Using Civilian Flight Data Recorders in Penetrator Missile Testing Applications

The proof they say is in the pudding and when you want to prove that a missile works as expected you’ve got to fire it and collect data about what happens. The equipment needed to do this is standard enough – flight test is an activity that has been going on since the invention of flight, except we now use sophisticated electronics rather than pen and paper. While flight test is a mature field, missiles do present a more challenging prospect. Aside from them generally being more compact than an aircraft and experiencing harsher conditions, the fact they are destroyed means it’s very difficult to gather data by a means other than telemetry. While this has been effective for decades, there is a special case where telemetry is not a viable option – penetrator missiles.

These missiles, often called ‘bunker busters’, will penetrate into a building, the ground etc. and telemetry will be lost for the last few moments of flight. What is needed then is a recorder designed to survive the harsh conditions. Most aerospace recorders will not be able to survive such an event, but could be modified to do so. This would be a risky and expensive process – a better approach is to use an already proven off-the-shelf product.

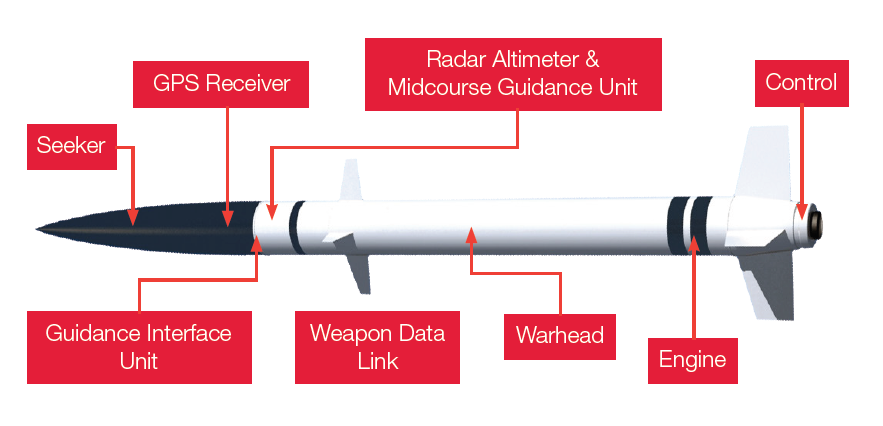

Cross Section of Typical Guided Missile Image







Figure 1Cross Section of Typical Guided Missile

Crash survivable recorders are common in other aerospace applications – civil passenger transport. Most aircraft that carry passengers have to have one or more flight data recorders (FDR) installed to capture cockpit voice, data and datalink messages and store them in a crash protected memory module (CPMM). This CPMM is required to withstand an aircraft crash to help the accident investigators determine the cause of the event.

The disadvantage of extremely ruggedized storage used in CPMMs is that there are limitations to how compact and lightweight they can be. To survive the impact and penetration tests, they need a strong protective casing – titanium for example. Arguably the most difficult test to pass is the long-term exposure to high temperatures (10 hours at 260°C) where a heat shielding material, such as a phase-change substance, must prevent heat damage to the memory chips inside the unit. Thus, there is somewhat of a lower limit of how small and light an FDR can be.

However, most penetrator missiles are relatively large, so accommodating a CPMM should not be an issue. CPMMs, when coupled with a suitable telemetry instrumentation kit (TIK), are therefore capable of recording missile test data for later analysis. Curtiss-Wright has a long proven history of both producing FDRs and TIKs and has outlined possible architectures to make a reliable solution available in this white paper.
