Deploy faster with pre-configured, high-TRL 3U VPX systems
Our SWaP-optimized 3U VPX rugged mission computer systems are pre-integrated and pre-validated to reduce your cost, risk, and time to market. These systems are based on open standards to meet Modular Open Systems Approach (MOSA) requirements and qualified for temperature extremes, high altitudes, voltage spikes, shock, vibration, and more.
| Product Name | Product Image | Standard | Size | # of Slots | Platforms | Processors / FPGA | I/O Type | Product Sheet |
|---|---|---|---|---|---|---|---|---|

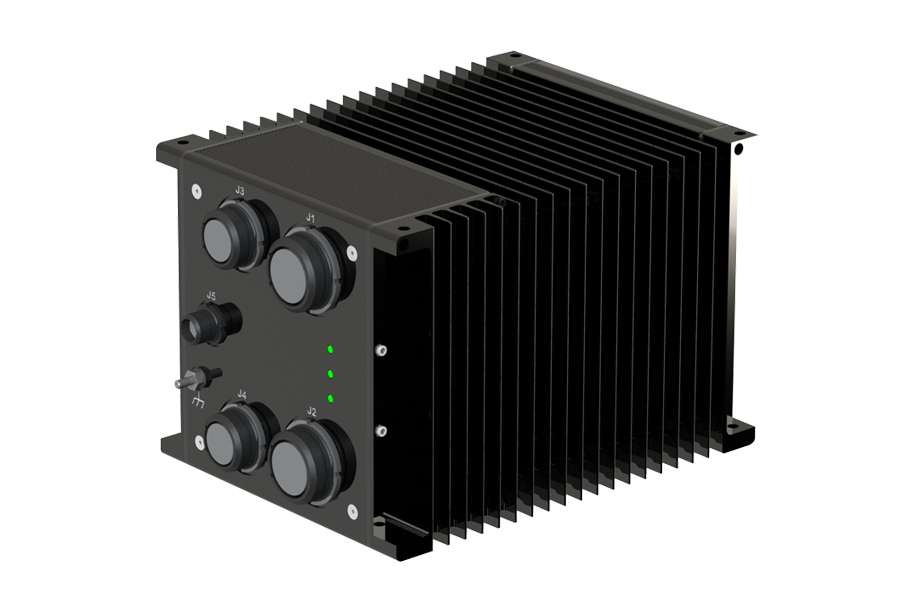

| MPMC-932x 2-slot 3U VPX Modular Computer |  |
OpenVPX, Packaged, VPX | 160-500in3 | 2 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | Intel Core i7, Intel Xeon, NXP Power Architecture, Xilinx Virtex-7 | CANbus, Custom, DVI, EIA-232/EIA-422, Gigabit Ethernet, USB, Video, XMC | |

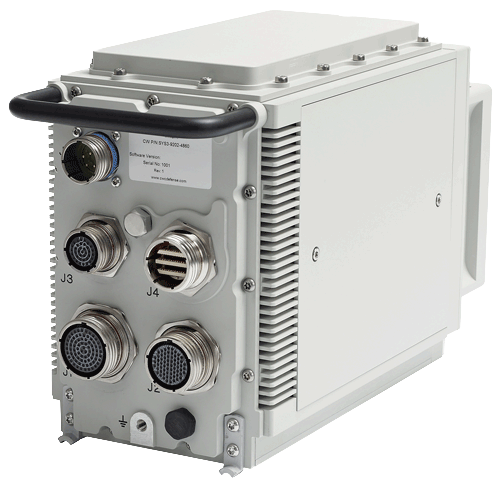

| MPMC-9355 3U 5-slot Mission Computer |  |
OpenVPX, Packaged, VPX | 500in3+ | 5 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | Intel Core i7, NXP Power Architecture | EIA-232, EIA-422, Gigabit Ethernet, MIL-STD-1553, USB, Video | |

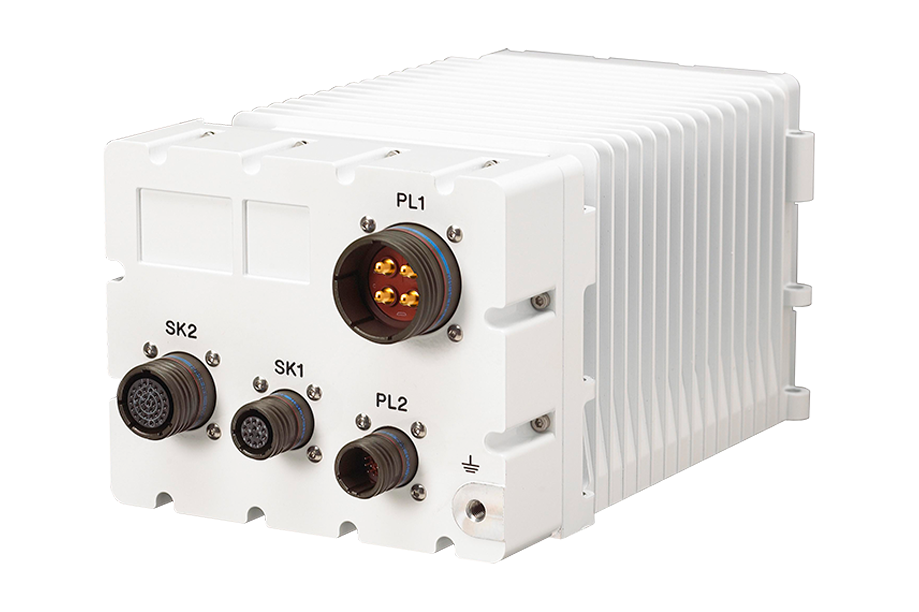

| MPMC-9335-2001 3U VPX 3-slot Compact Signal/Image Processing System |  |
VPX | < 300 in3 | 3 | Ground, Manned Fixed Wing, Rotorcraft, Unmanned | Intel Xeon | DVI, EIA-232, Gigabit Ethernet, MilCAN-A, USB | |

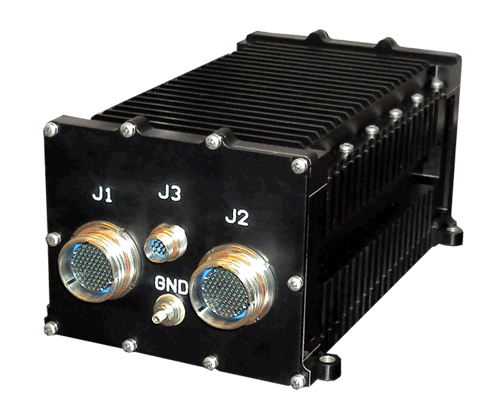

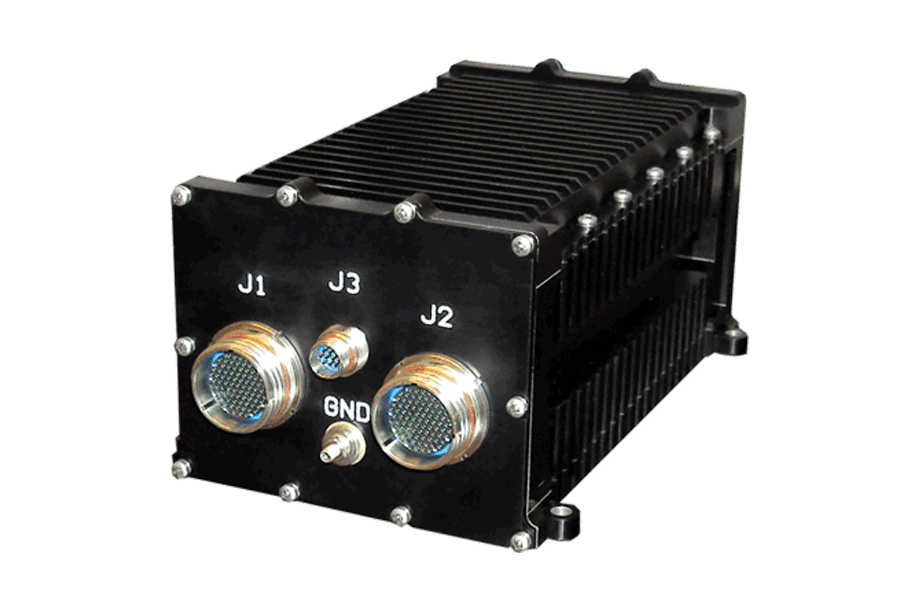

| MPMC-931x Rugged 3U 1-slot Modular Computer |  |
OpenVPX, Packaged, VPX | < 160 in3 | 1 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | Intel Core i7, Intel Xeon, NXP Power Architecture | ARINC 429, DVI, EIA-232/EIA-422, Gigabit Ethernet, GPIO, LVTTL, MIL-STD-1553, USB, Video | |

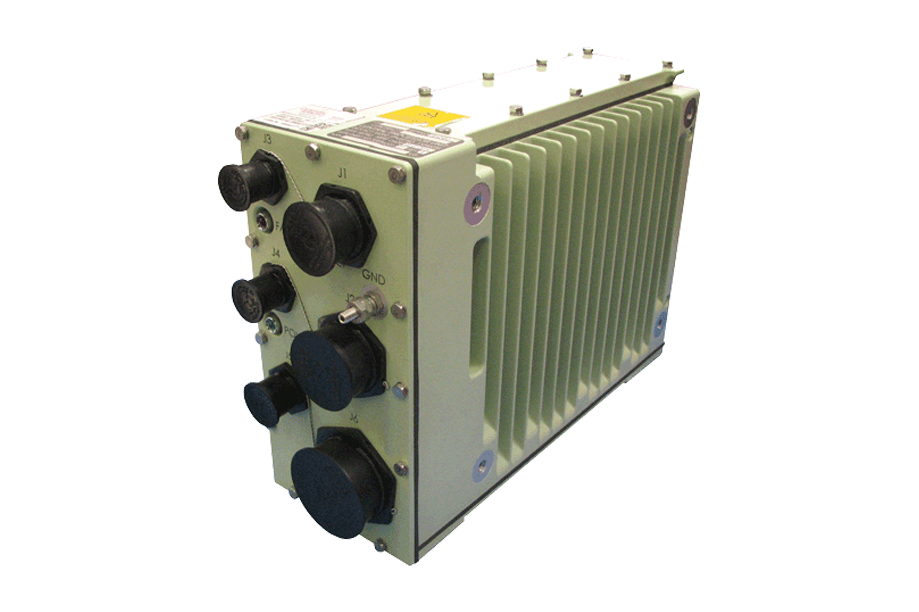

| MPMC-933x Rugged 3U 3-slot Ground Vehicle Computer |  |
Packaged, VPX | 160-500in3 | 3 | Ground | NXP Power Architecture | CANbus, DIO, EIA-232, Gigabit Ethernet, MIL-STD-1553, USB | |

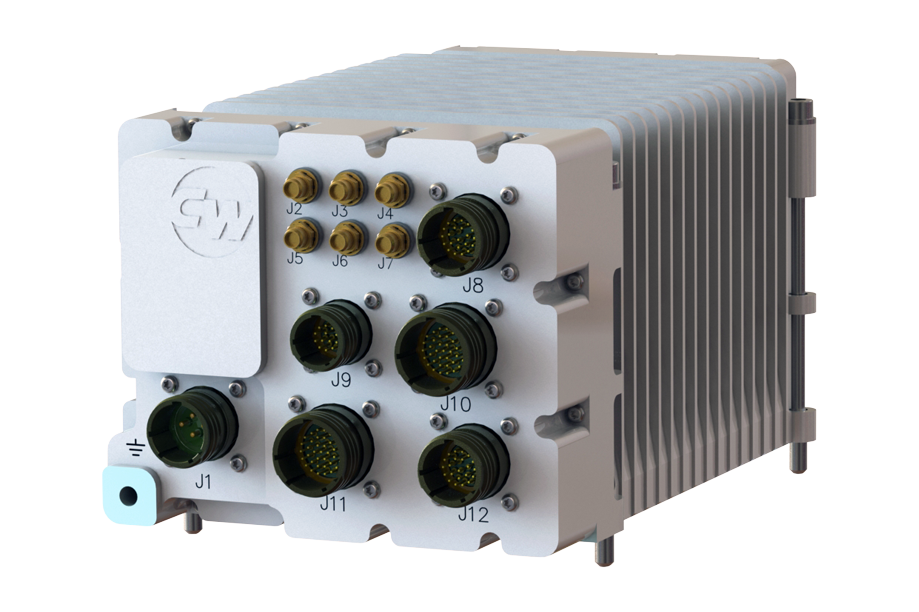

| MPMC-9336 3-slot 3U VPX Mission Computer |  |
OpenVPX, Packaged, VPX | < 300 in3 | 3 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | Intel Core i7, Xilinx Virtex-7 | ADCClockDACDVIGigabit EthernetM-LVDSRS-422SATAUSB | |

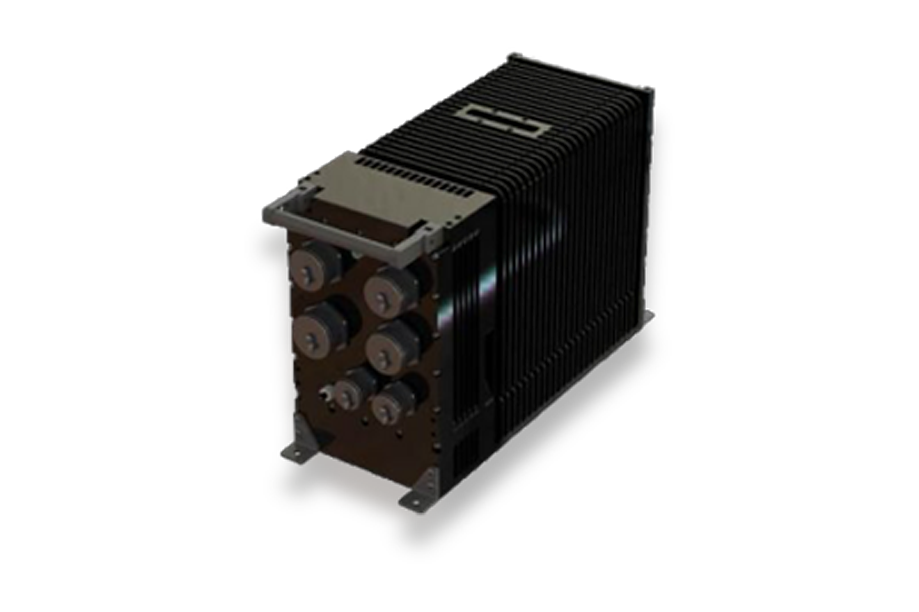

| MPMC-934x Wideband Microwave Receiver Rugged Quick Start Kit |  |
VPX | 500in3+ | 4 | Ground, Lab, Manned Fixed Wing, Rotorcraft, Unmanned | Intel Core i7, Xilinx Virtex-7 | A/D, D/A Converter, FE port, RF input | |
| MPMC-935x Rugged 3U 5-slot Mission Computer |  |
cPCI, OpenVPX, Packaged, VPX | 160-500in3 | 5 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | Intel Core i7, Intel Xeon, NXP Power Architecture, Xilinx Virtex-7 | ARINC 429, DVI, EIA-232/EIA-422, Gigabit Ethernet, GPIO, LVTTL, MIL-STD-1553, RGB/VGA, SATA, USB, Video | |

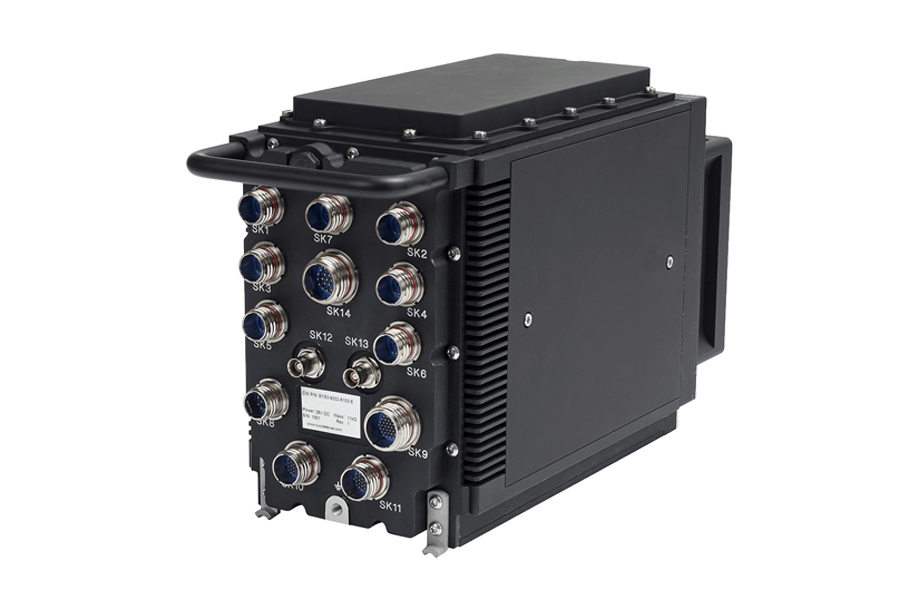

| MPMC-9365 3U 6-slot Mission Computer |  |
Packaged, VPX | 500in3+ | 6 | Ground, Manned Fixed Wing, Rotorcraft, Unmanned | Intel Core i7, Xilinx Virtex-7 | Custom, Gigabit Ethernet, GPIO, LVTTL, USB | |

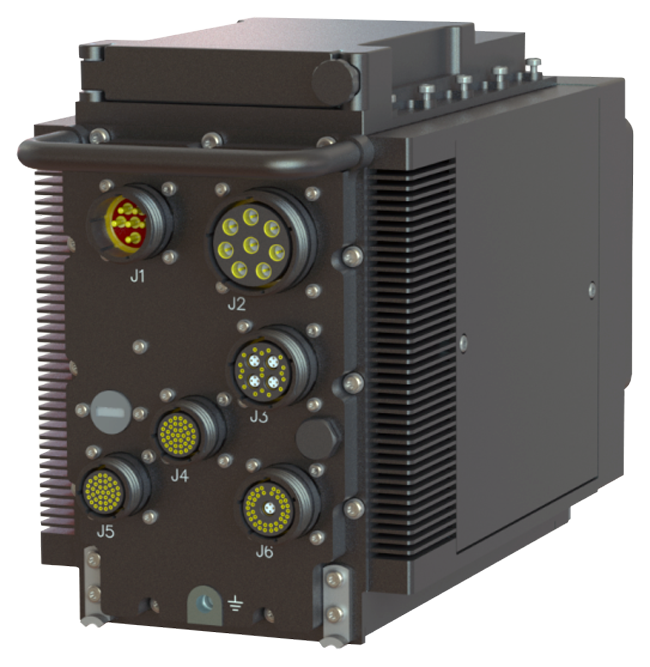

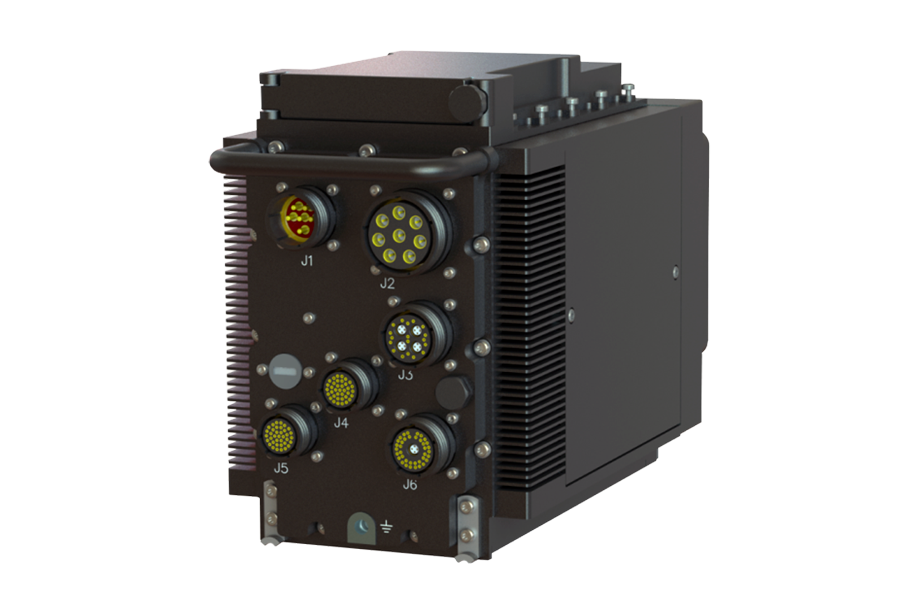

| MPMC-9366 6-slot 3U VPX Mission Computer |  |
OpenVPX, Packaged, VPX | < 974 in3 | 6 | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | NXP Power Architecture, Xilinx Virtex-7 | ADC, DAC, Gigabit Ethernet, M-LVDS, RS-232, RS-422, Serial FPDP | |

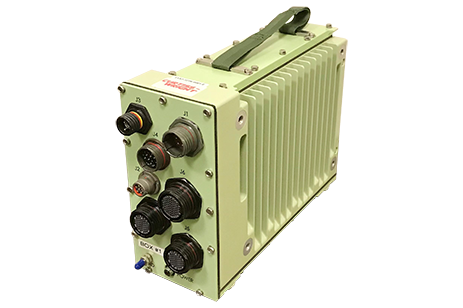

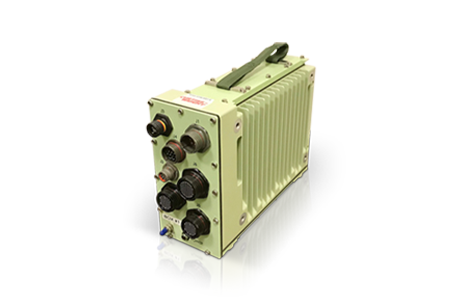

| CMOSS/SOSA Starter Kit |  |
SOSA, CMOSS, Packaged, VPX | 340 in3 | 3 | Ground | Intel Xeon | 10 GbE, Gigabit Ethernet | |

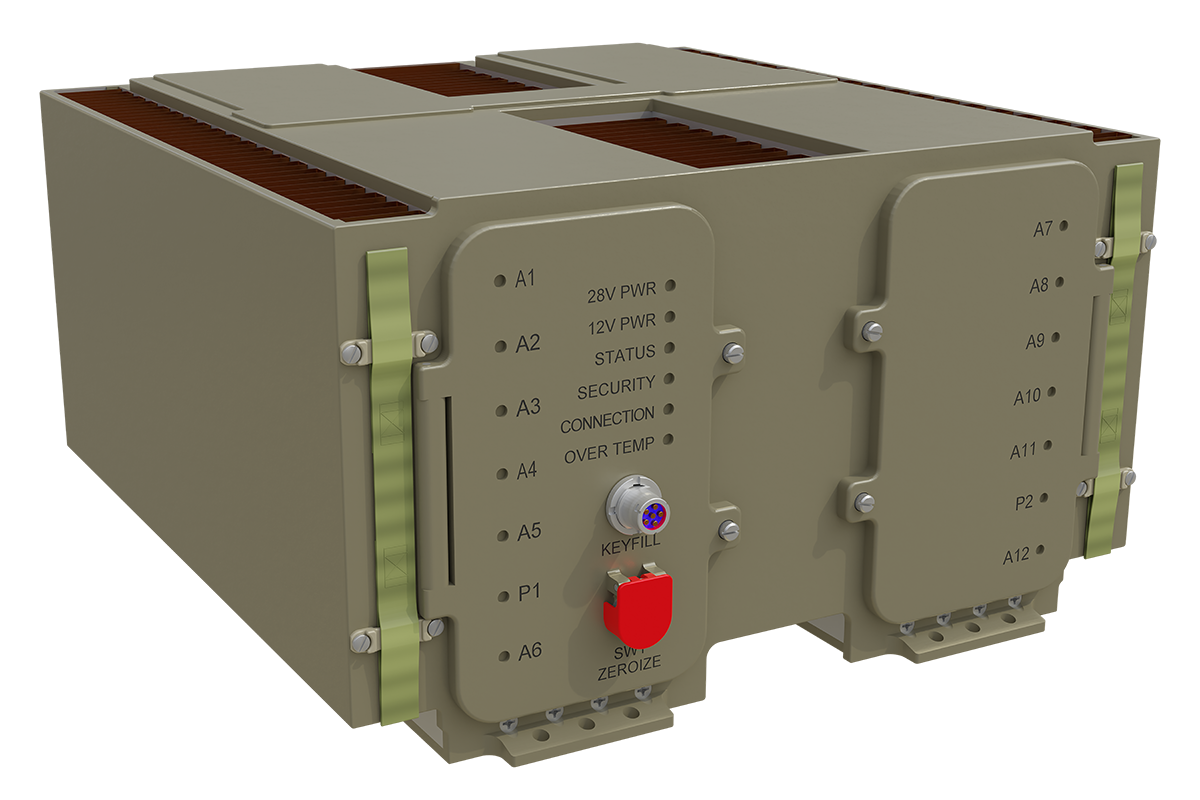

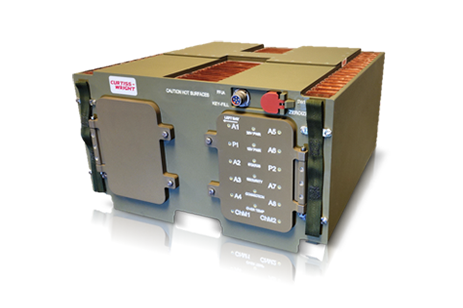

| 8-Slot CMOSS/SOSA Enclosure |  |
SOSA, CMOSS, Packaged, VPX | 500 in3+ | 8 | Rotorcraft, Naval, Manned Fixed Wing, Ground | Intel Xeon, NXP Layerscape Arm | User defined | |
| MPMC-9337-2000 3-slot 3U VPX Compact Signal/Image Processing System |  |
VPX, OpenVPX, Packaged | 250in3 | 3 | Ground, Manned, Fixed Wing, Naval, Rotorcraft, Unmanned, Lab | Intel Xeon | 10GBASE-SR Ethernet, 1000BASE-T Ethernet, MilCAN/CAN, GPGPU DVI, USB2, RS422, EIA-232, DVI |
Modular Open Systems Approach (MOSA)
Our rugged hardware is designed to bring the benefits of a Modular Open Systems Approach (MOSA) architecture to deployed ground, airborne, and naval platforms. We’re so dedicated to open standards development that we’re even a leading member and participant in the organizations and consortiums actively defining and improving these important system hardware standards.
Deploy Faster with 3U VPX Solutions
Getting 3U VPX-based LRUs from development to deployment can be time-consuming, and costly. Curtiss-Wright simplifies the process with complete, innovative, COTS-based 3U VPX solutions that accelerate system development for land, air, and sea platforms.
