Small Form Factor Mission Computers

board background
board background
Small Form Factor Mission Computers

Modular, small and ultra-small form factor mission computers designed to maximize performance and flexibility while minimizing SWaP-C

Our commercial off-the-shelf (COTS), small form factor (SFF) mission computer systems feature modular, expandable designs that pair powerful graphics and data processing capabilities with ultra-reliable mechanical robustness. The Parvus DuraCOR line of field-tested, MIL-STD qualified mission processors has been proven in the harshest C5ISR applications, performing reliably under thermal, shock, and vibration extremes. We provide application engineering services to extend base system computing functionality for these SFF systems, adding in application-specific I/O and communications cards typically with minimal NRE fees or delivery schedule impact. With pre-integrated, pre-qualified systems tailored by the factory, Parvus DuraCOR customers dramatically reduce scheduling risk and program management overhead, while maximizing use of open architecture COTS technologies. Available in ultra-small, small and standard form factors, we have solutions to meet you SWaP requirements.

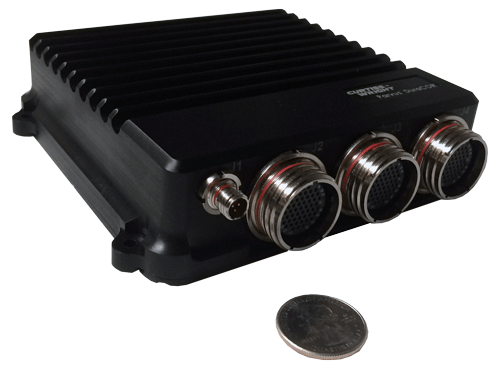

Ultra-Small Form Factor (USFF) Mission Computers

Our USFF mission computers are our most SWaP-optimized systems. Rigorous quality testing means MIL-STD grade equipment, in a smaller package.

USFF Mission Computers

Product Image Product Name Standard Processor Memory I/O Type Ruggedization Platforms Data Sheet
Parvus DuraCOR 311 COM, Mini-PCIe, Packaged Intel Atom E3845 4 GB Audio, DIO, EIA-232/EIA-422, Gigabit Ethernet, Mini-PCIe, USB, Video DO-160, MIL-STD-1275D, MIL-STD-461F, MIL-STD-704F, MIL-STD-810G Ground, Manned Fixed Wing, Naval, Rotorcraft
Parvus DuraCOR 312 Jetson, Mini-PCIe, Packaged NVIDIA Jetson TX2i (Arm-A57 + Denver 2) 8GB Audio, CANbus, DIO, EIA-232/EIA-422, Gigabit Ethernet, Mini-PCIe, USB, Video DO-160, MIL-STD-1275D, MIL-STD-461F, MIL-STD-704F, MIL-STD-810G Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned

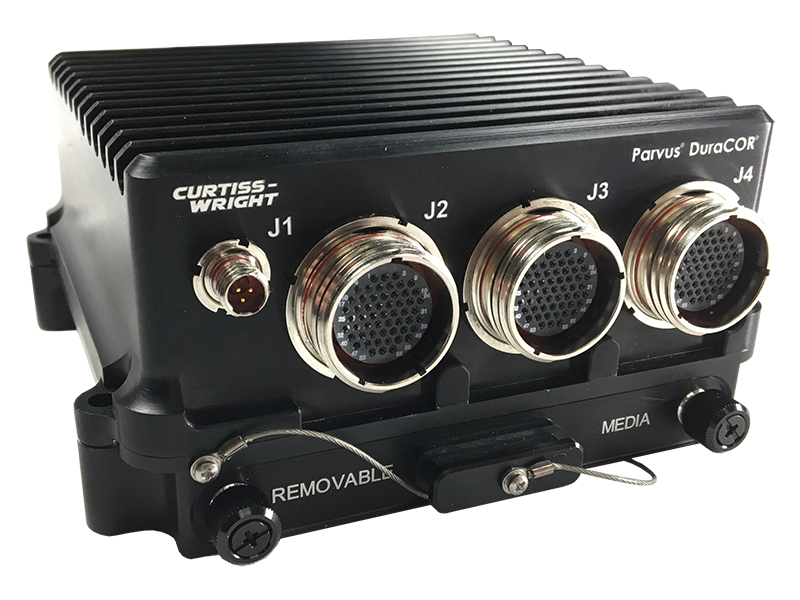

Parvus DuraCOR 313 COM, Mini-PCIe, Packaged Intel Atom x6400E 16 GB Gigabit Ethernet, USB, DIO, EIA-232/EIA-422, Mini-PCIe, Audio, Video MIL-STD-1275D, DO-160, MIL-STD-704F, MIL-STD-461F, MIL-STD-810G Ground, Unmanned, Rotorcraft, Naval, Manned Fixed Wing
Airborne IADS NXDP-3000-1

SFF Mission Computers

For systems requiring additional processing power, our rugged small form factor mission computers are an excellent balance of SWaP and performance.

SFF mission computers

Product Image Product Name Standard Processor Memory I/O Type Ruggedization Platforms Data Sheet

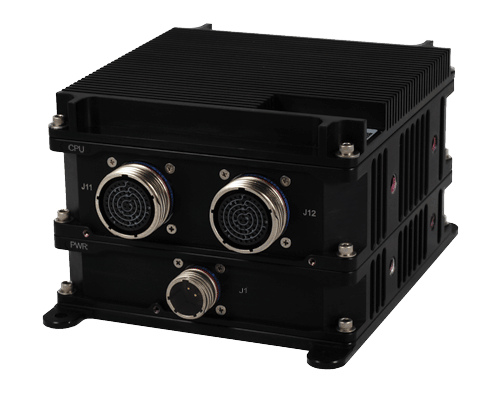

Parvus DuraCOR 8043 COMe, Mini-PCle, Packaged, PCI/104-Express 6th Gen Intel Xeon E3-1515M 32 GB Audio, CMO, DIO, eSATA, Gigabit Ethernet, GPIO, Mini-PCle, PCle104, USB DO-160G, MIL-STD-1275D, MIL-STD-46G, MIL-STD-704F, MIL-STD-810G Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned
Parvus DuraCOR 8044 COMe, Mini-PCIe, Packaged, PCI/104-Express Intel Xeon W 11th Generation 64/128 GB Audio, CMO, DIO, eSATA, Gigabit, Ethernet, GPIO, Mini-PCIe, PCIe104, USB DO-160G, MIL-STD-1275D, MIL-STD-46G, MIL-STD-704F, MIL-STD-810G Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned
Parvus DuraCOR AGX-Xavier Jetson, Mini-PCIe, Packaged 512-core CUDA-capable Volta GPU, 8-core ARMv8.2 CPU, NVIDIA Jetson AGX Xavier SoM 32GB Audio, CAN, Ethernet, GPIO, Serial, USB, Video Output DO-160G, MIL-STD-1275/704, MIL-STD-461F, MIL-STD-810 Fixed Wing, Ground, Naval, Rotorcraft, Unmanned
Airborne IADS NXDP-4000-1

Standard Mission Computers

For powerful graphics and processing, our standard mission computers are extensively tested and rugged.

Standard Mission Computers

Product Image Product Name Standard Processor Memory I/O Type Ruggedization Platforms Data Sheet
MPMC-902x Packaged, PMC, XMC N/A MIL-STD-461F, MIL-STD-704F, MIL-STD-810F Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned


System Solutions Brochure

From data recording and storage to networking, processing, and video management, our system solutions are designed to be smaller, smarter, faster, and stronger than your competitors. See our full range of system solutions.

Read the Brochure

Modular Open Systems Approach

Our rugged hardware is designed to bring the benefits of a Modular Open Systems Approach (MOSA) architecture to deployed ground, airborne, and naval platforms. We’re so dedicated to open standards development that we’re even a leading member and participant in the organizations and consortiums actively defining and improving these important system hardware standards.

Ultra-Small Form Factor Mission Systems White Paper

Great things come in small packages. This white paper examines a new class of ultra-small form factor (USFF) mission systems and how these line replaceable units (LRUs) are helping to reduce cost, capability trade-offs, and size, weight, and power (SWaP) in size and weight-constrained platforms.



Ensuring seamless integration and future-ready scalability

Size, weight, and power (SWaP) is critical for embedded systems, especially those destined for small aircraft or land vehicles. At the same time, these systems must be flexible to interface with the many different legacy or modern sensors, networking devices, and other onboard systems. See how our small form factor mission computers deliver modularity and scalability in a remarkably small footprint.
