Embedded Graphics Controllers

Reduce power, cost, and latency with high reliability

Whether you need a high-performance solution to see clearly in degraded visual environments or you're looking to add graphics processing without taking up another slot in your SWaP-constrained system, you'll find the perfect fit in our selection of embedded graphics cards. Leveraging the latest rugged embedded technology, these rugged modules offer a variety of input, output, and performance level options to meet your requirements and fit your budget. Available in 3U VPX and SWaP-optimized XMC mezzanine form factors, our embedded GPU cards deliver powerful capability with a minimalistic footprint.

  • For programs with DO-254 requirements, we offer safety-certifiable options delivered with a full artifacts kit to reduce the time, cost, and risk associated with certification.
  • Curtiss-Wright has partnered with CoreAVI for powerful graphics drivers for the most popular operating systems.

Embedded Graphics Controllers and Software Drivers

Product Image Product Name Processor Display Controllers Outputs Inputs Safety Certifiable Format Data Sheet

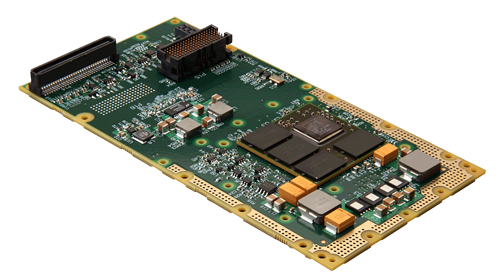

XMC-715 & X-715 AMD Radeon E4690 2 2 DVI, 2 DisplayPort, 2 RGBHV, 1NTSC/PAL N/A Yes XMC
VPX3-719 AMD E8860 6 4 DVI & 1 Analog RGBHV & 1 NTSC/PAL/STANAG 3350/RGBHV & 2 HD-SDI 2 HD-SDI/analog (NTSC/PAL/STANAG 3350/RGBHV) DO-254/DO-178C 3U VPX
VPX3-717 & V3-717 AMD E8860 6 6 DVI & 1 Analog RGBHV N/A DO-254 DAL C/DO-178C DAL A 3U VPX
VPX3-716 AMD E8860 4 2 DVI & 2 DisplayPort N/A N/A 3U VPX
Graphics Software Suite Supports AMD E8860 & E4690 DO-254/DO-178 Software

Reduce cost, risk, and time to market with COTS hardware

Our broad selection of open-architecture, commercial off-the-shelf (COTS) rugged embedded computing solutions process data in real time to support mission-critical functions. Field proven, highly engineered and manufactured to stringent quality standards, Curtiss-Wright’s COTS boards leverage our extensive experience and expertise to reduce your program cost, development time and overall risk.

Read the Brochure

Uncovering the Invisible

Degraded visual environments (DVE) contribute to aircraft crashes and reduced operational effectiveness. When an existing customer required graphics processing and data storage that could handle their DVE sensor system requirements, they contacted Curtiss-Wright to provide a commercial off-the-shelf (COTS) solution that could reduce their cost and time-to-market, while at the same time providing a long lifecycle.
