I/O Cards

Finding I/O modules to integrate into real-time, mission-critical systems can be difficult. Fast and reliable movement of information between the various elements in the interconnected system requires rugged, high-performance solutions to support intelligent analog I/O for frequency and time-domain applications, as well as digital I/O, MIL-STD-1553, and other I/O. These cards are designed to deliver optimal performance in extreme temperature and vibration conditions. Interoperable with our range of SBC, FPGA, and GPU modules, these highly reliable cards are designed to simplify integration and let you focus on your application, not low-level connectivity.

Analog I/O & Digital Receivers

VPX, XMC, PMC, and FMC card-based sensor I/O solutions are designed to handle the toughest operating environments while packing maximum functionality in a minimal physical footprint. These analog I/O, digital transceivers, and receivers include I/O for frequency and time-domain applications, as well as digital I/O.

Product Image Product Name Description Profile Processor / FPGA Memory Interface(s) Data Sheet

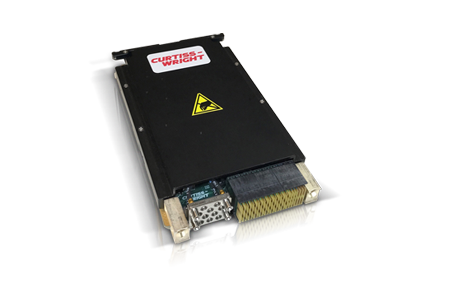

VPX3-E320 Ruggedized Universal Software-Defined Radio (SDR) - Compatiable with Ettus 320 3U OpenVPX 1H-14.6.11 AMD Zynq 7045: Dual core Arm A9 & Virtex 7 Series FPGA 1 GB DDR3 RAM - A9, 2 GB DDR3 RAM - FPGA RF: 70MHz-6GHz, up to 56MHz bandwidth, 1GbE, 10GbE
VPX3-534 3U VPX Kintex UltraScale FPGA 6 Gsps Transceiver 3U OpenVPX 1D-14.2.6 AMD Kintex UltraScale KU115 FPGA and AMD Zynq ZU4 UltraScale+ MPSoC 4 GB DDR4 2x 6Gsps/12b analog inputs, 2x 6Gsps/12b analog outputs
VPX3-530 3U VPX Virtex 7 FPGA ADC/DAC 3U OpenVPX 1D-14.2.6 AMD Virtex 7 VX690T 8 GB DDR4 (2ch) 2x 4Gsps/12b or 4x 2Gsps/12b analog inputs, 2x 5.6Gsps/14b DAC
XF07-RLDRAM AMD Kintex 7 Coprocessor XMC XMC AMD Kintex 7 XC7K325T (-410 optional) 2x 256MB SDRAM or 2x 16M x 36- bit RLDRAM 8 x HSS, 4 x LVDS, 2 x DIO

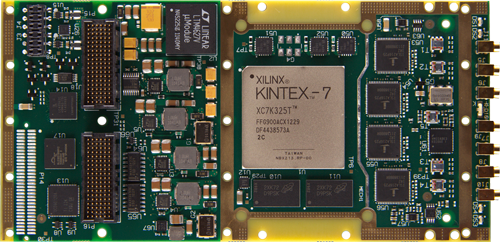

XF07-518 Quad 500MSPS 14b AMD Kintex 7 Digital Receiver XMC XMC AMD Kintex 7 325T 2x 256MB SDRAM Front Panel: Triggers, RF Clock XMC P16: 20x LVDS & 38x single-ended - OR - PMC P14: 32x LVDS
XF07-516 Quad 250MSPS 16b AMD Kintex 7 Digital Receiver XMC XMC AMD Kintex 7 325T 2x 256MB SDRAM Front Panel: Triggers, RF Clock XMC P16: 20x LVDS & 38x single-ended - OR - PMC P14: 32x LVDS

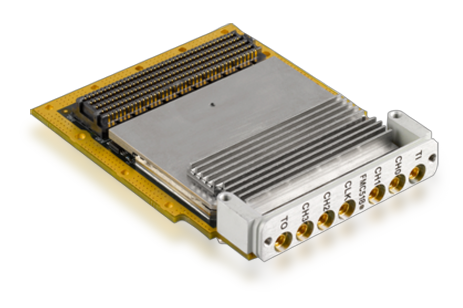

FMC-518 Quad 500MSPS 14-bit ADC FMC XMC - - FMC

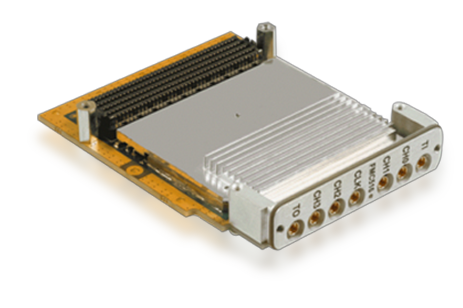

FMC-516 Quad 250MSPS 16b ADC FMC FMC - - FMC

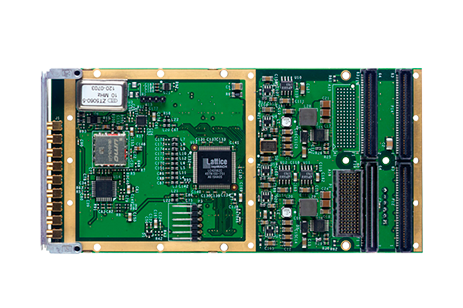

XCLK1 Multi-Channel Clock Generator XMC - - -

Digital I/O

The XMC cards are designed to handle high-speed digital I/O including LVDS, HSS, and customizable I/O, and perform reliably in the toughest operating environments.

Product Image Product Name Description Profile Processor / FPGA Backplane Fabric Analog/Digital Data Sheet
XF07-RLDRAM AMD Kintex 7 Coprocessor XMC XMC AMD Kintex 7 XC7K325T (-410 optional) 8-lane PCIe2 LVDS digital and analog I/O

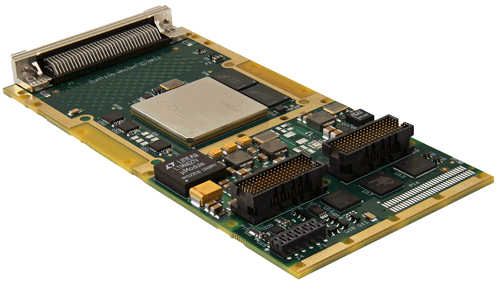

XF07-523 FPGA Digital IO XMC XMC AMD Kintex 7 XC7K325T 8-lane PCIe2 Digital
XF07-518 Quad 500MSPS 14b AMD Kintex 7 Digital Receiver XMC XMC AMD Kintex 7 325T 8-lane PCIe2 Analog
XF07-516 Quad 250MSPS 16b AMD Kintex 7 Digital Receiver XMC XMC AMD Kintex 7 325T 8-lane PCIe2 Analog

Avionics/Vehicle Bus, Serial I/O, Shared Memory, & more

The avionics/vehicle bus, Serial I/O, MIL-STD-1553, and shared memory cards are available in a variety of form factors including VPX, XMC, PMC, PCI, CMC, PCIe, and systems.

Product Image Product Name Description Profile Category Ruggedization Other Data Sheet
XMC-E01 Quad-Channel 10Gb Fiber-optic Ethernet XMC XMC Fiber-Optic Ethernet AC 0, CC 200 IEEE 1588 PTP support, 10GBASE-SR
XMC-603 MIL-STD-1553 XMC XMC MIL-STD-1553 AC 0, AC 100, CC 200 I/O available on either PN4 OR PN6. Support for direct and transformer coupled
VPX3-611 MIL-STD-1553B and ARINC 429 I/O Module 3U OpenVPX 1U-14.3.3 or 1F-14.3.2 MIL-STD-1553, ARINC 429 AC 0, CC 200 2x MIL-STD-1553, ARINC 429 (10x Tx, 18x Rx), 8x UART, 16x discretes, 2x I2S, 2x SPI, Compatible with the V3-152
RIM Modules RTM Options for Mezzanine I/O XMC RIM Module AC 0 Compatible with the VPX3-611

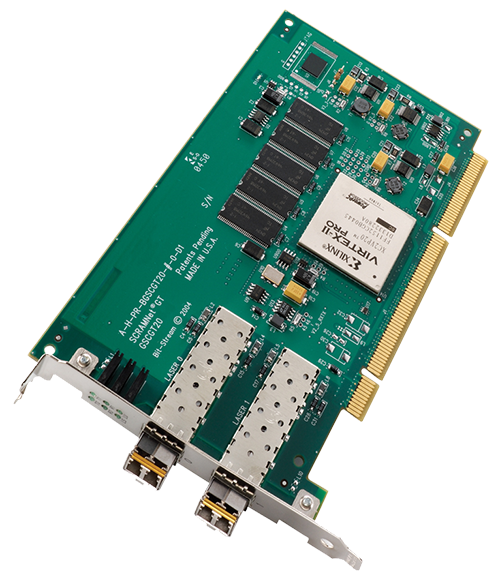

SCRAMNet GT200 Shared-Memory PCI/PMC Card PCI, PMC Shared Memory AC 0 210+ MB/s data throughput, 128 MB memory, Sub-microsecond system latency

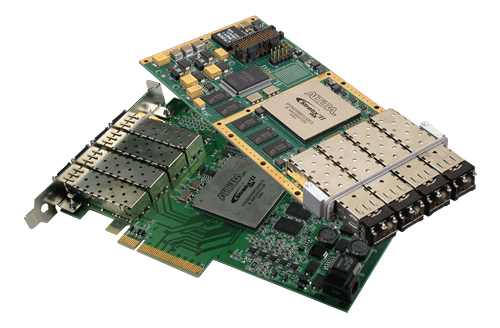

FibreXtreme Multi-Channel SL100/SL240 Serial FPDP PCIe Serial FPDP AC 0 1, 2 or 4 full speed channels, Supports 1.0625 Gb/s, 2.5 Gb/s and 5.0 Gb/s serial data rates, 256MB DDR2 SDRAM
