SOSA Aligned OpenVPX Cards

The Open Group Sensor Open Systems Architecture™ (SOSA) Technical Standard leverages OpenVPX to define card profiles with specifications for features such as pinouts, Ethernet capabilities, and serial ports. The objective is to allow flexibility in selecting and acquiring sensors and subsystems that provide sensor data collection, processing, exploitation, communication, and related functions over the entire life cycle of the C5ISR system. SOSA achieves this through hardware and interface interoperability, software portability, and technology reuse across platforms and form factors while facilitating the best commercially developed technology for its affordability, performance, and scalability.

SOSA Aligned 3U OpenVPX Cards

Product Image Product Name Description Profile Processor / FPGA Memory Data Sheet

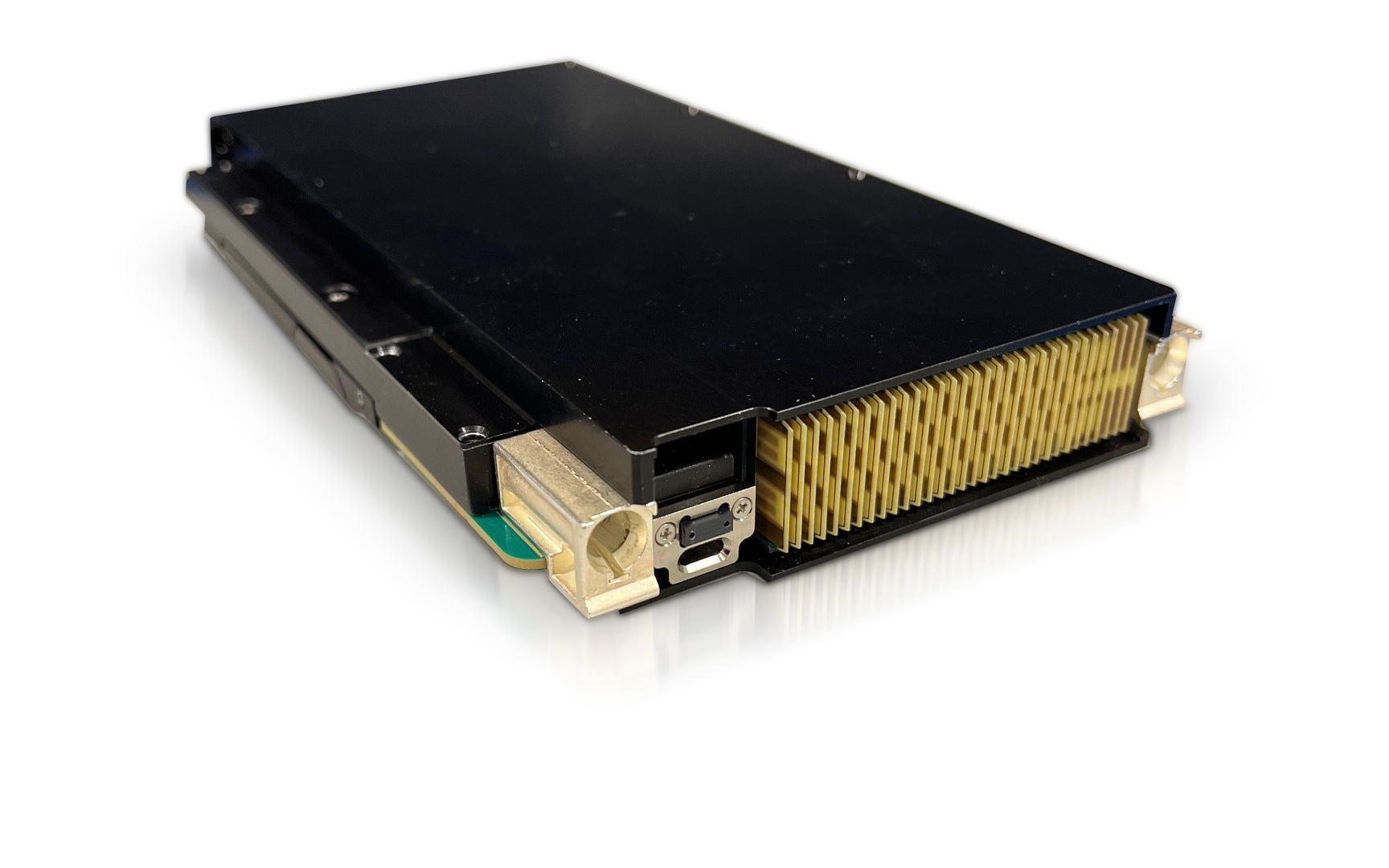

VPX3-623 Cisco Powered Switch SOSA aligned profile
VPX3-1260 3U VPX 40GbE Intel Xeon SBC & DSP card SOSA I/O Intensive 14.2.16, SOSA Payload 14.6.11, OpenVPX 2F2T-14.2.5 or 2F2U-14.2.3, 3U E-OSA Intel Xeon E-2276MRE (Coffee Lake) 8-32 GB DDR4, NVMe SSD 20/80/160/480 GB
VPX3-1708 & V3-1708 DO-254 Safety-Certifiable 3U VPX NXP LX 2160A Processor Board 3U SOSA I/O Intensive 14.2.16 NXP Layerscape LX2160A Arm 32 GB DDR4, NVMe SSD 80 GB
VPX3-4935 3U VPX NVIDIA Quadro Turing (TU104) GPU Card with 3072 CUDA, 384 Tensor, & 48 RT Cores 3U SOSA Payload 14.6.11 or 14.6.13, 3U OpenVPX NVIDIA Quadro Turing TU104 RTX 5000E 16 GB GDDR6 DRAM
VPX3-663 SOSA Aligned PCIe Gen 3 & 10G Ethernet Switch 3U OpenVPX 6F8U-14.4.9 or 6F6U-14.4.1
VPX3-687 3U VPX SOSA Aligned 10/40 Gb Ethernet Switch SOSA SLT3-SWH-6F1U7U-14.4.14, OpenVPX 2F24U, 8F, 6F8U, 4F16U
CHAMP-XD3 3U VPX 40GbE enabled AI, ML, HPEC & DSP Processor Card 3U SOSA Payload 14.6.11 or 14.6.13 Intel Xeon D-1746TER (Ice Lake) and AMD Zynq UltraScale+ MPSoC 48 GB DDR4, NVMe SSD: Single or dual 80/160/480 GB
VPX3-673A 3U CMOSS/SOSA Aligned A-PNT Module with Integrated Software SOSA Radial Clock SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1 NXP Layerscape LS1043A Arm 2-4 GB
VPX3-1262 3U VPX Intel Core i7 14-core 100G-KR4 enabled SBC SOSA I/O Intensive 14.2.16 or SOSA Payload 14.6.11 or 14.6.13 Intel Core i7-13800HRE (Raptor Lake) 32/64GB
VPX3-6826 3U VPX 100G Dual CP/DP Ethernet Switch with TSN on Control Plane 3U SOSA: -6F1U7U-14.4.14 or -6F8U-14.4.15, 3U OpenVPX: -2F24U-14.4.3
VPX3-4937 3U VPX NVIDIA Ada GPU Card with 9728 CUDA, 304 Tensor, & 76 RT cores 3U SOSA Payload 14.6.11-0 or 14.2.3, 3U OpenVPX NVIDIA Ada RTX AD5000E (AD103) 16 GB GDDR6 DRAM
VPX3-6816 3U VPX 100G CP/DP Ethernet Switch 3U SOSA: -6F1U7U-14.4.14 or -6F8U-14.4.15, 3U OpenVPX: -2F24U-14.4.3 or -6F8U-14.4.9 or -8F-14.4.2
V3-1222 DO-254 Safety-Certifiable 3U VPX 13th Gen Intel Core i7-1376PRE Avionics Processor Board 3U SOSA I/O Intensive - 14.2.16 Intel Core i7-1376PRE (13th Gen Raptor Lake) 64GB DDR5, M.2 Socket for SSD
VPX3-4938 3U VPX NVIDIA RTX 5000 Ada GPU Card with 9728 CUDA, 304 Tensor, & 76 RT cores 3U SOSA Payload 14.6.11-0 or 14.6.13-0, 3U OpenVPX NVIDIA Ada RTX AD5000E (AD103) 16 GB GDDR6 DRAM
VPX3-4940 3U VPX NVIDIA RTX GPU Card with 3072 CUDA, 96 Tensor, & 24 RT cores 3U SOSA Payload, 3U OpenVPX NVIDIA Ada RTX AD2000E (AD107) 8 GB GDDR6 DRAM

SOSA Aligned 6U OpenVPX Cards

Product Image Product Name Description Profile Processor / FPGA Memory Backplane Fabric Data Sheet
CHAMP-FX7 6U VPX Dual AMD Versal Premium Adaptive SoC Processor 6U SOSA Payload: 10.6.4 w/ VITA 66.5 backplane fiber I/O 2 x AMD Versal Premium Adaptive SoC, VP1502 or VP1702 Per Adaptive SoC: 2 banks 16GB DDR4 & 1 bank 8GB DDR4 w/ ECC DP:100G-KR4, EP:16-lane PCIe4, CP:10G-KR
CHAMP-XD4 6U VPX Dual Intel Xeon D-2700 and Cognitive DSP Processor 6U SOSA Payload: 10.6.4 2x Intel Xeon D-2700 with AMD Zynq UltraScale+ FPGA 4 channels of 16 GB DDR4 SDRAM per node DP:100G-KR4, EP:PCIe4, CP:10G-KR
VPX6-4939 6U OpenVPX Single or Dual NVIDIA RTX5000 Ada GPU Card with 9728 CUDA, 304 Tensor, and 76 RT Cores 6U SOSA Payload 10.6.4, 6U OpenVPX Single or Dual NVIDIA RTX AD5000E (AD103) 16 GB GDDR6 DRAM per GPU 16-lane PCIe4
100 GbE Data Processing Technology

Fabric100 provides a complete end-to-end ecosystem of 100 GbE connectivity between rugged OpenVPX cards and system components.
