Axon AXN Data Acquisition Systems

Data Acquisition
Data Acquisition
Axon AXN Data Acquisition Systems

Ultra-compact, scalable & reliable data acquisition systems

The Axon™ AXN has been optimized to integrate with existing Acra KAM-500 hardware and software. There will be equivalent AXN and ADAU products and Axon AXN shares most characteristics and features with the Axon ADAU. There are some exceptions, which include

  • Orange and black color to align with the current product offering
  • Only supported in DAS Studio
  • Data streaming over Ethernet in iNET-X, IENA and Chapter 10 UDP
  • Use similar part naming as legacy Acra KAM-500 products

Axon AXN Data Acquisition Systems

Product Image Product Name Type Data Sheet
Axon Quick Start Kit Quick Start Kit
AXN/CHS/03U Axon Chassis - 3 User-Slots Chassis
AXN/CHS/06U Axon Chassis, 6 User-Slots Chassis
AXN/CHS/09U Axon Chassis, 9 User-Slots Chassis
AXN/CHS/16U Axon Chassis, 16 User-Slots Chassis
AXN/BCU/402 Axon Backplane Controller Backplane Controller
AXN/ADC/401 Flexible ADC Module - 8 Analog Channels ADC Module
AXN/ADC/404 Axon Full/Half Bridge ADC ADC Module
AXN/ADC/405 Differential Ended ADC (5 kHz b/w) - 24 Analog Channels ADC Module
AXN/ADC/406 16 Channel ¼-Bridge ADC ADC Module
AXN/ADC/408 ADC 3-Phase Power Monitor Module - 6 Analog Channels ADC Module
AXN/TCG/401 Axon Voice-to-Digital Converter ADC Module
AXN/TDC/401 Thermocouple ADC Module - 15 Channels ADC Module
AXN/ENC/401 Axon IRIG-106 PCM Encoder DAU Module
AXN/ABM/401 24 Channel ARINC-429 Bus Monitor/Packetizer Bus Monitor
AXN/DSI/401 24 Channel Discrete Input Discrete/Counter Module
AXN/UBM/401 16 Channel Serial Bus Parser/Packetizer Bus Parser/Packetizer

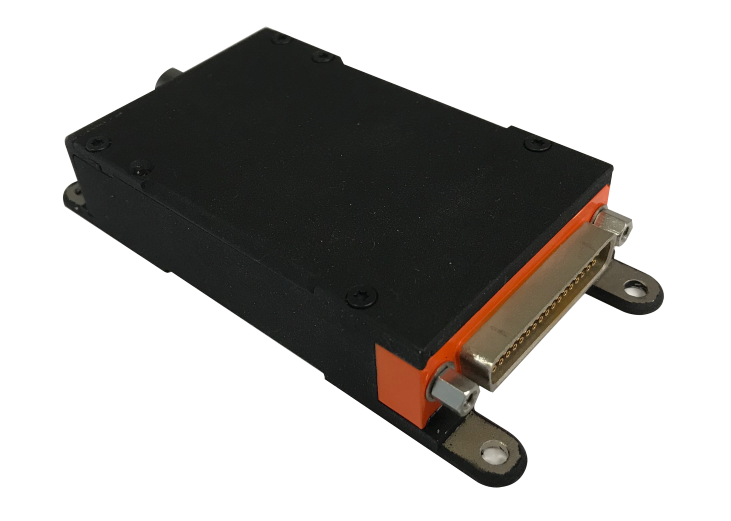

AXN/ITE/01U Remote Housing for Axon Module Remote Housing
AXN/EXT/401 Axon Extender Card Extender Card
AXN/MBM/401 MIL-STD-1553 Bus Monitor Parser/Packetizer Bus Parser/Packetizer
AXN/MBM/402 MIL-STD-1553 Bus Monitor Parser/Packetizer Bus Parser/Packetizer
AXN/DSI/402 24 Channel Discrete Input Discrete/Counter Module
AXN/ENC/402 Axon IRIG-106 Chapter 7 PCM Encoder DAU Module
AXN/ICP/401 Accelerometer ADC with FFT and TEDS support, 12 ch at 25 ksps ADC Module
AXN/HSS/401 High-speed Serial Interface Synchronous Serial Module
AXN/ICP/402 Accelerometer ADC with FFT and TEDS support, 4 ch at 100 ksps ADC Module
AXN/MEM/401 Axon PCAP Recorder Module ADC Module

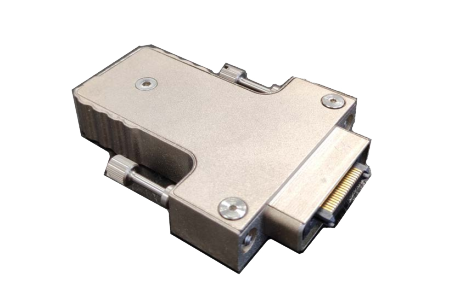

AXN/SSD/001/256GB SATA SSD Enclosure for AXN/MEM/401 DAU Module
AXN/DTU/001 - AXN/MEM/401 Data Transfer Unit SSD Dock
AXN/CBM/401 CAN bus monitor parser/packetizer Bus Monitor Parser/packetizer

Rugged Instrumentation System Solutions for Applications with Limited Space

There are several aircraft where there is a very limited amount of space available to install any hardware. This is particularly true for platforms such as missiles and smaller UAVs but is also the case for post-production aircraft, especially military jets and smaller rotorcraft. This white paper examines the challenges and solutions for implementing a compact data acquisition package, with a particular focus on missiles, and proposes a modular solution to best meet tight space and installation time requirements without compromising system flexibility.


Axon Data Acquisition Unit (DAU) Product Family Brochure

For airborne applications where reliability and size, weight, and power (SWaP) are critical, the Curtiss-Wright Axon ADAU family of data acquisition units (DAU) are ready to take flight. Designed leveraging our decades of experience as a trusted, proven leader, ADAUs are future-proof, SWaP-optimized, and available in a variety of flexible configurations to meet your exact program requirements.

Read the Brochure

Aerospace Instrumentation Brochure

Modern aerospace instrumentation systems can be highly complex, and it can be difficult to know how to meet program needs. It’s not unusual for requirements to change during a campaign and cause significant delays, and data must be captured reliably no matter what – otherwise expensive additional flights will be needed or months of program data could be lost. Read our brochure to learn how you can reduce your risk with commercial off-the-shelf (COTS) solutions.

Read the Brochure
