Curtiss-Wright provides sophisticated ground data processing systems based on cutting edge bit synchronizer, Smart Source Selector, decommutator technology and flight test software. The resulting systems significantly improve signal reception and increase data throughput. Smart Source Selection offers alternatives not previously available with diversity combiners and simple best data selectors. It first passes the signals through cutting edge bit synchronizers and then repeatedly compares different signals – dynamically adjusting one signal’s timing to ensure data coherency. Large latencies between diversity streams are accounted for through buffers. Curtiss-Wright’s Smart Source Selectors use an all-digital design utilizing two independent programmable matched filters and PLLs to track deviations in the bitrate of the received signal pair. Multi-stage equalizers are used to compensate for pulse-shape inter-symbol interference while a delay between switching operations eliminates switching noise.

The selection of what portions of data to use from each diversity source is based on SNR metrics and the alignment status of each stream. Either a single stream is selected, or multiple steams are added and their polarities used to generate a result. As Smart Source Selection uses soft bit estimates, all possible diversity strategies (polar, frequency, spatial etc.) are supported. Even encrypted diversity signals can be resolved into a single PCM stream. Smart Source Selectors lead to theoretical BER improvements of 3 dB with 2 channels, 6 dB with four and 9 dB with eight. This ground station technology is extendable for even greater flexibility and improved signal quality where requirements demand.

These ground data systems are specifically tailored to meet the demanding needs of real-time applications, leveraging Curtiss-Wright’s heritage in designing flight test solutions. The telemetry ground stations offer an end to end solution from receiver to processed data with tightly integrated hardware and software. GS Studio 3 setup and management software facilitates quick and easy configuration changes. GS Works 7 is the advanced real-time/post processing analysis software (powered by IADS technology) that completes the ground station solution. It has a host of features that allows displays, data and analysis techniques to be built, tested and saved with little effort at any time before or during the mission.

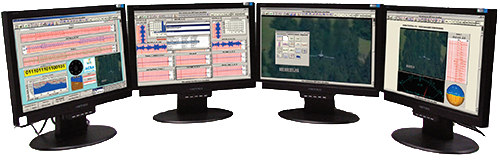

GS Works 8 Real-time and post-test data visualization and analysis software

GS Works 8 Real-time and post-test data visualization and analysis software

GS Works 8 is a complete real-time and post-test display and analysis software suite based on SYMVIONICS, Inc. IADS. More>

  • Interactive interface which allows custom data displays, parameter definitions, analysis options and test setup
  • Runs on Microsoft Windows PC platform and Commercial Off-The-Shelf networks
  • Exports to CSV, Microsoft Excel and MathWorks MATLAB
  • Walk-away media - full data set
  • XidML compatible (versions 2.41 and 3.0)

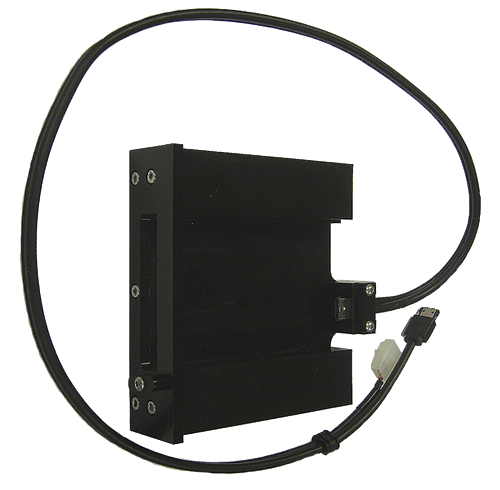

GTS/BAY/001 Desktop 5.25 inch DRE/SSD/00x harness

GTS/BAY/001 Desktop 5.25 inch DRE/SSD/00x harness

The GTS/BAY/001 interfaces from the DRE/SSD/00x (SATA storage media) to the PC motherboard via e-SATA to SATA and power cable interface. More>

  • 5.25 inch front load format
  • Securing latch
  • Light-weight, rugged, nylon housing
GTS/BSC/003 Bit synchronizer PCI board (20 Mbps) - 1 channel

GTS/BSC/003 Bit synchronizer PCI board (20 Mbps) - 1 channel

The GTS/BSC/003 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter, or base line variations. More>

  • Bit error rate performance within 1 dB of theory
  • Programmable loop bandwidth (0.01 to 2.0%)
  • Bit-rates up to 20 Mbps (NRZ-L codes)

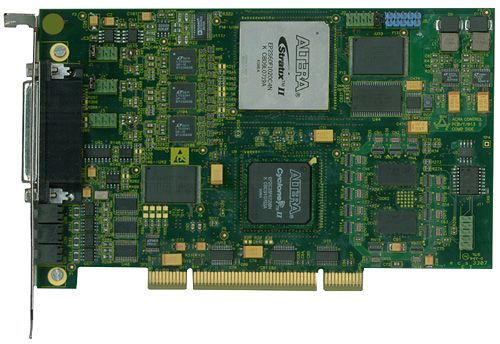

GTS/BSC/004 Smart Source Selector PCI board (20 Mbps) - 2 channels

GTS/BSC/004 Smart Source Selector PCI board (20 Mbps) - 2 channels

The GTS/BSC/004 reconstructs a serial PCM data stream from a source that's been corrupted by amplitude modulation, phase jitter or base line variations. More>

  • Bit synchronizer
    • Bit error rate performance within 1 dB of theory
    • Programmable loop bandwidth (0.01 to 2.0%)
    • Bit-rates up to 20 Mbps (NRZ-L codes)
  • Smart Source Selector
    • Aligns over 350 bits
    • Moving match window of 64 bits
    • Uses signal quality estimates to weigh input signals
    • Yields performance gain of up to 3 dB when all channels are used
GTS/BSC/005 Bit synchronizer PCI board (20 Mbps) - 2 channels

GTS/BSC/005 Bit synchronizer PCI board (20 Mbps) - 2 channels

The all-digital design utilizes two independent, programmable matched filters and Phase Locked Loops (PLLs) to track deviations in the bit-rate. More>

  • Bit error rate performance within 1 dB of theory
  • Programmable loop bandwidth (0.01 to 2.0%)
  • Bit-rates up to 20 Mbps (NRZ-L codes)
GTS/BSC/006 Smart Source Selector PCI board (20 Mbps) - 3 channels

GTS/BSC/006 Smart Source Selector PCI board (20 Mbps) - 3 channels

Features include a bit synchronizer, with a bit error rate performance within 1dB of theory, and a Smart Source Selector that aligns over 350 bits. More>

  • Bit synchronizer
    • Bit error rate performance within 1 dB of theory
    • Programmable loop bandwidth (0.01 to 2.0%)
    • Bit-rates up to 20 Mbps (NRZ-L codes)
  • Smart Source Selector
    • Aligns over 350 bits
    • Moving match window of 64 bits
    • Uses signal quality estimates to weigh input signals
    • Yields performance gain of up to 4.7 dB when all channels are used

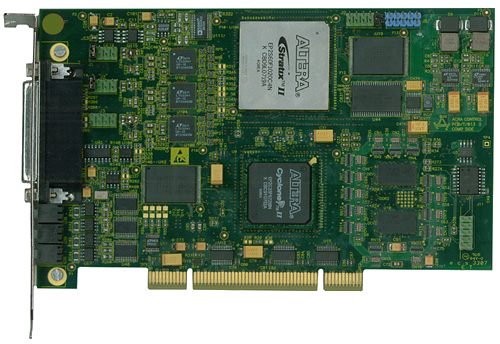

GTS/DEC/003 Bit synchronizer and PCM decommutator PCI board (20 Mbps) - 1 channel

GTS/DEC/003 Bit synchronizer and PCM decommutator PCI board (20 Mbps) - 1 channel

The GTS/DEC/003 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter or amplitude modulation. More>

  • Bit synchronizer
  • PCM decommutator
  • Loopback tester
GTS/DEC/004 Smart Source Selector and PCM decommutator PCI board (20 Mbps) - 2 channels

GTS/DEC/004 Smart Source Selector and PCM decommutator PCI board (20 Mbps) - 2 channels

GTS/DEC/004 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter or amplitude modulation. More>

  • Bit synchronizer
  • Smart Source Selector
  • PCM decommutator
  • Loopback tester
GTS/DEC/005 Bit synchronizer and PCM decommutator PCI board (20 Mbps) - 2 channels

GTS/DEC/005 Bit synchronizer and PCM decommutator PCI board (20 Mbps) - 2 channels

GTS/DEC/005 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter or amplitude modulation. More>

  • Bit synchronizer
  • PCM decommutator
  • Loopback tester
GTS/DEC/006 Smart Source Selector and PCM decommutator PCI board (20 Mbps) - 3 channels

GTS/DEC/006 Smart Source Selector and PCM decommutator PCI board (20 Mbps) - 3 channels

The GTS/DEC/006 reconstructs a serial PCM data stream from a source that has been corrupted by noise, phase jitter or amplitude modulation. More>

  • Bit synchronizer
  • Smart Source Selector - performance gain of up to 4.7 dB when all channels are used
  • PCM decommutator
  • Loopback tester

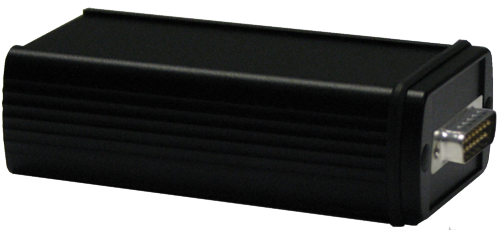

SAM/DEC/008 Ethernet based USB powered PCM decommutator

SAM/DEC/008 Ethernet based USB powered PCM decommutator

The SAM/DEC/008 decommutates PCM streams and provides a programming link for Acra KAM-500 systems using a single USB 2.0 connection in the ground station PC. More>

  • IRIG-106 Ch. 4 compliant PCM decommutator
  • USB 2.0 Type II compatible, no additional power source required
  • 1 Mbps programming link to Acra KAM-500 systems over X-PROG
  • Choice of three PCM codes BIØ-L, NRZ-L or RNRZ-L-15
  • Choice of RS-422 or TTL inputs
GTS/FSC/003 PCM decommutator PCI board (20 Mbps) - 1 channel

GTS/FSC/003 PCM decommutator PCI board (20 Mbps) - 1 channel

The GTS/FSC/003 is a single-channel PCM decommutator. Each minor frame can be tagged with time from an IRIG-B source to an accuracy of 1 µs. More>

  • PCM decommutator
  • Loopback tester
GTS/FSC/005 PCM decommutator PCI board (20 Mbps) - 2 channels

GTS/FSC/005 PCM decommutator PCI board (20 Mbps) - 2 channels

The GTS/FSC/005 is a two-channel PCM decommutator, and each minor frame can be tagged with time from an IRIG-B source to an accuracy of 1 µs. More>

  • PCM decommutator
  • Loopback tester
GTS/IPC/002 19 inch x 4U rackmount industrial PC

GTS/IPC/002 19 inch x 4U rackmount industrial PC

The GTS/IPC/002 may be deployed as either a 19 inch rackmount unit or a freestanding unit by removing the mounting lugs for use in 19 inch rack systems. More>

  • 19 inch x 4U high industrial rack mounting enclosure
  • Processor, memory etc. specifications as required

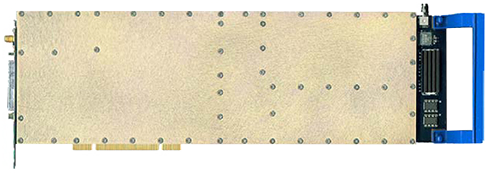

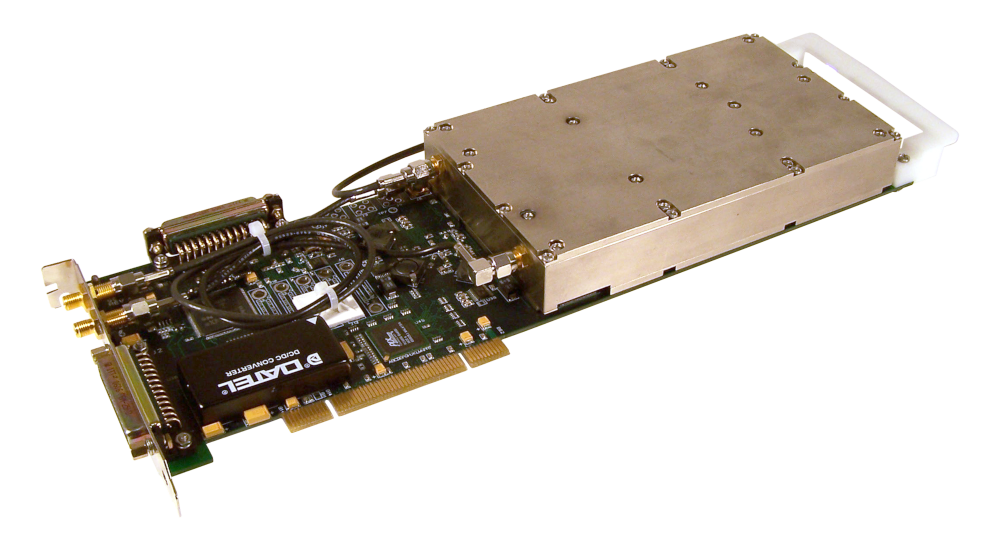

GTS/RCV/001 14 Mbps L/S band receiver PCI card with 12 IF filters

GTS/RCV/001 14 Mbps L/S band receiver PCI card with 12 IF filters

The GTS/RCV/001 is a single-slot, full-length PCI FM receiver. The wideband design supports PCM data rates up to 14 Mbps. More>

  • Single-slot PCI receiver with FM demodulation
  • AM and linear AGC outputs
  • Supports data rates up to 14 Mbps
  • 8 dB noise figure (max.); 5 dB (typ.)
  • 70 MHz IF output from down-converter and 70 MHz IF input to IF receiver
  • 20 MHz reference I/O for use with GTS/DIV/001
GTS/SYS/005 Telemetry ground station with smart source selection

GTS/SYS/005 Telemetry ground station with smart source selection

The GTS/SYS/005 is a telemetry ground station which includes two E-band telemetry receivers and a bit-synchronizer with smart source selection. More>

  • Data rates up to 14 Mbps
  • Bit error rate 3 dB better than theory
  • Rugged 19 inch x 4U enclosure
  • GS Works data analysis and visualization software
  • XidML compatible

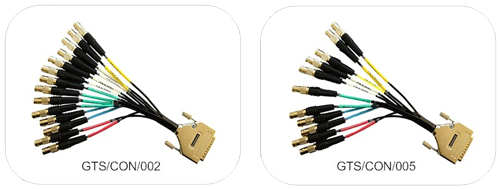

Ground Station Cables Standard cables used for GTS-500 system assembly

Ground Station Cables Standard cables used for GTS-500 system assembly

The connectors and cables are designed to mate with standard GTS-500 products. Allows easy access to common signals used in bench testing. More>

  • Allows easy access to common signals used in bench testing and most applications
