RF Transmitters, Transponders, Receivers, Missile Test, and Flight Safety
Curtiss-Wright radio frequency (RF) and wireless systems are proven, high-performance, dependable, economical solutions for many applications. These include flight, space, and remote ground based applications requiring accurate transmission of telemetry, digital, wideband, and video data.
We are leading providers of flight termination receivers, airborne telemetry receivers, radar transponders, and telemetry transmitters. These work seamlessly with our ground station product line and provide the best value on the market by including features not found in similar industry solutions while also providing on-time delivery.
We design our RF products with ease of use as a primary goal. They can be easily programmed and implement highly-efficient and stable Advanced Range Telemetry Modulation (ARTM) demodulation. To ensure quality and customer satisfaction, our state-of-the-art facility provides an in-house RF design laboratory, a fully-capable screen room, and an EMI test capability.
We design data acquisition systems, transponders, transmitters, flight termination receivers, and telemetry instrumentation kits (TIK) with our customer in mind. Our modern products include
- Compact single and multimode transmitters with a bandwidth efficiency improvement of two to one compared to many competitors
- RF transponders with the highest efficiency in the industry
- IP‐transceivers for point to point Ethernet links

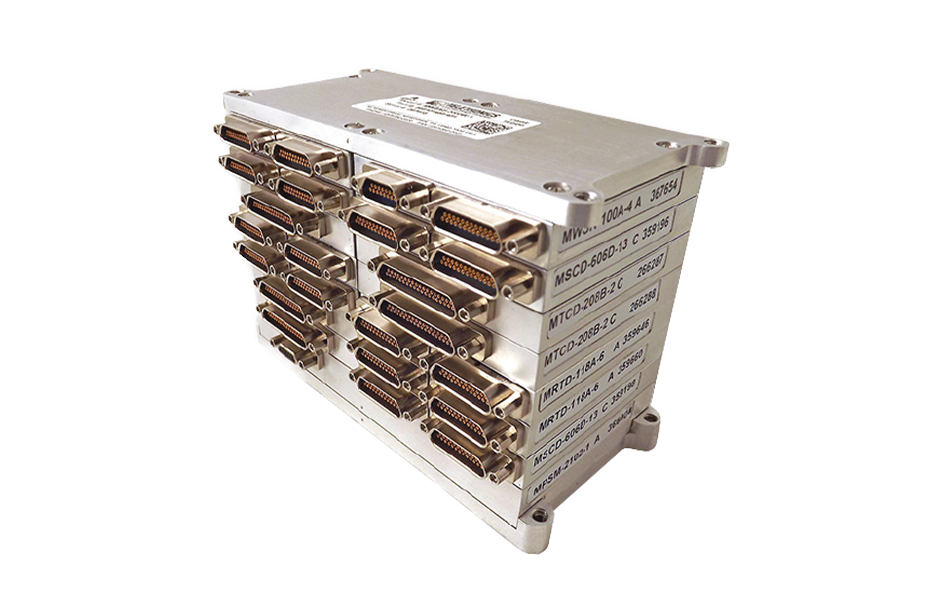

- Network or PCM based data acquisition units that are flexible, meaning the module selection can meet the needs of all stages of a missile development program
- Flight proven re‐radiation systems for stealth applications
- Exportable encryption that encodes streaming telemetry data using AES-256
- Modular and configurable TIKs featuring all the building blocks for a complete system
Range safety
We also supply flight safety products, developed in close consultation with the RCC range safety community. These units are miniature airborne flight termination receivers with tone decoders for flight termination system applications that utilized tone based command messaging. They provide a highly sensitive superheterodyne RF receiver whose center frequency is programmable.
The versatile tone decoder can be programmed to decode 3 or 4 tone sequences, as well as the tone frequencies, and provides command outputs for flight termination devices. They can be enabled for full fail-safe operation, including programmable loss of tone duration.
Our products are used in a variety of applications including
- Flight test
- Missile training, development, and lot testing
- Range safety
Product Sheet | Product Name | IMAGE | Description | Dimensions (W x H x L) | Features |
---|---|---|---|---|---|

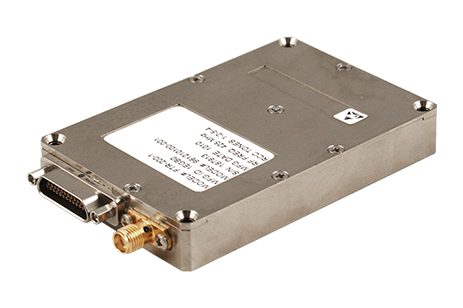

TTC FTR-200 Miniature Flight Termination Receiver and Tone Decoder | ![]() |
Flight termination receiver | 2.2 x 0.5 x 3.3“, 56 x 13 x 84 mm | Programmable 3 or 4 tone decoder. | |
MESP-100-2 NIST-Certified Encryption Device for ARTM Telemetry Applications | ![]() |
Encryption Support Package | 61 x 61 x 155 mm, 2.4 x 2.4 x 6.1” | Data encryption and decryption, Customized for ARTM transmitters, 100 kbps to 20 Mbps data rates | |

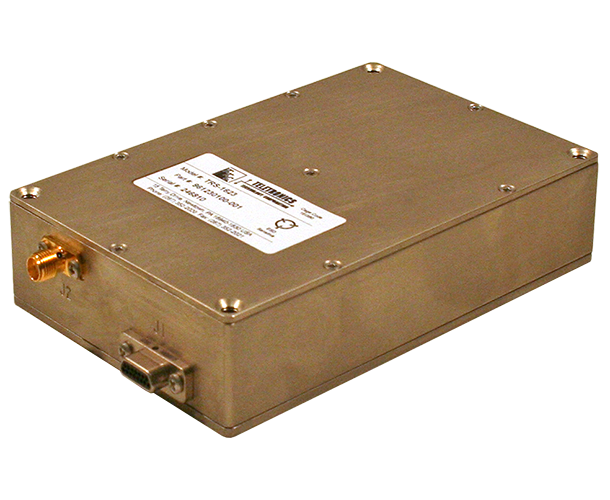

TTC TRS-1600 Airborne Multimode Receiver | ![]() |
Airborne multimode receiver | 3.3 x 1.0 x 5.0”, 84 x 25 x 127 mm | PCM/FM & SOQPSK, S-Band | |

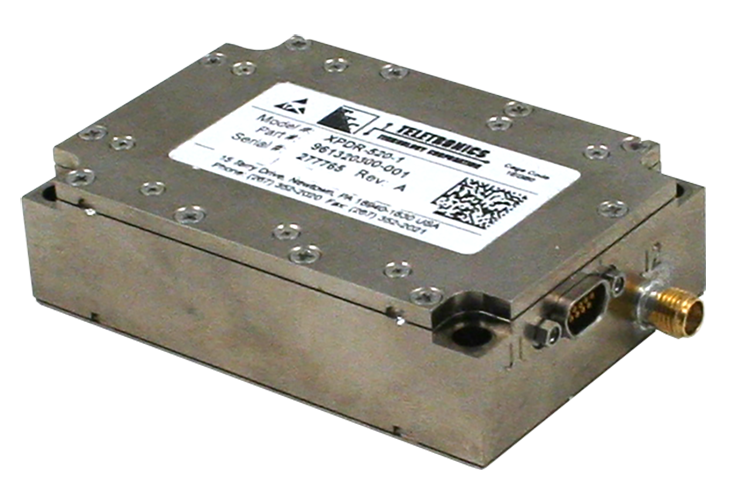

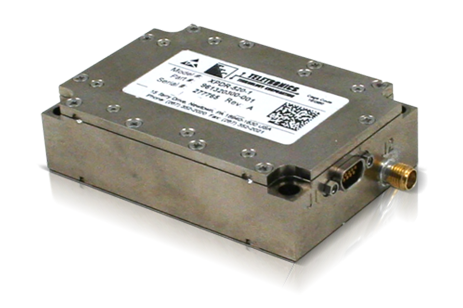

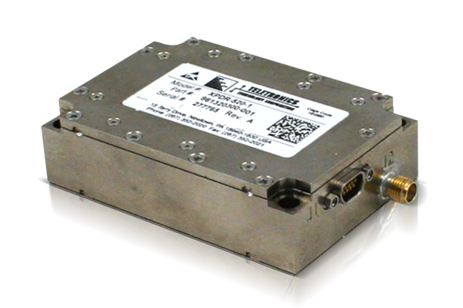

TTC XPDR-520 Radar Enhancing C-Band Transponder | ![]() |
Radar Enhancing C-Band Transponder | 51 x 76 x 20 mm, 2 x 3 x 0.8”, 51 x 76 x 20 mm | 20 Watts, Low power draw (20 watts of pulsed RF output with typical power consumption of 5 watts) | |

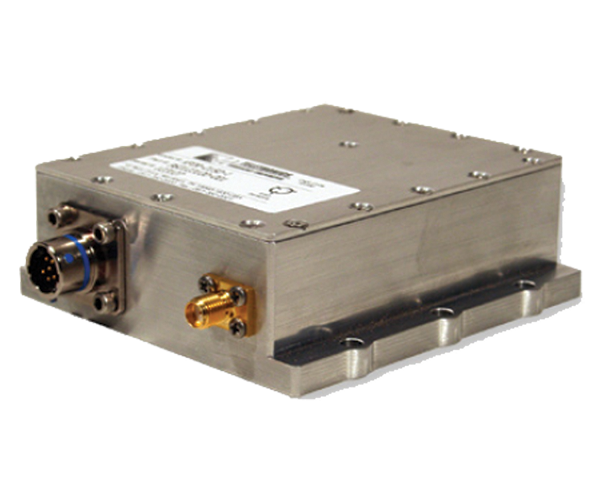

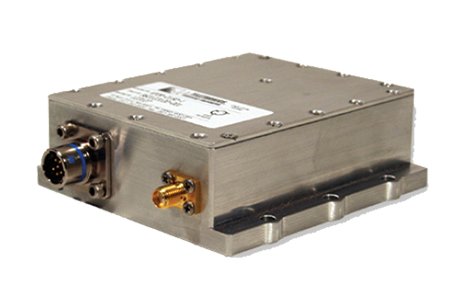

TTC XPDR-2150 Radar Enhancing C-Band Transponder | ![]() |
Radar Enhancing C-Band Transponder | 2.86 x 3.5 x 1.40”, 73 x 89 x 36 mm | 50 Watts, Low power draw (50 watts of pulsed RF output with typical power consumption of 5 watts) | |

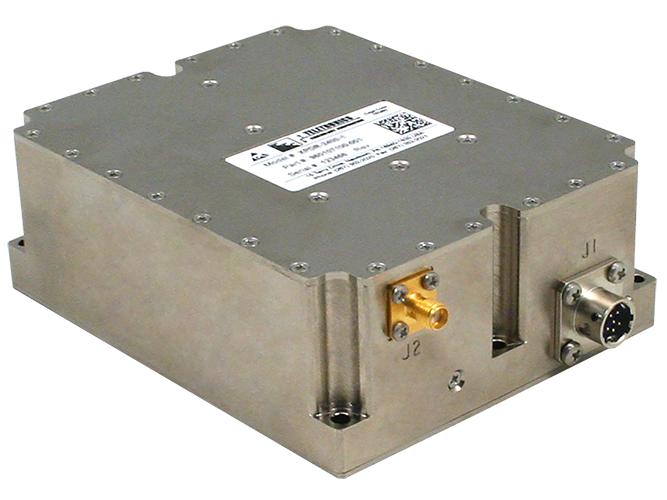

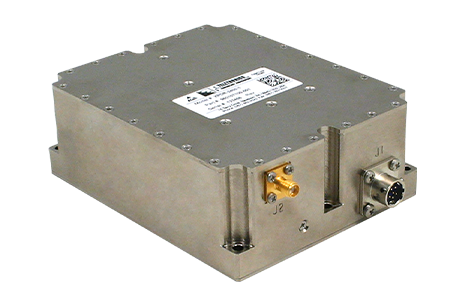

TTC XPDR-2400 Radar Enhancing C-Band Transponder | ![]() |
Radar Enhancing C-Band Transponder | 4 x 5 x 1.8”, 102 x 127 x 46 mm | Low power draw (400 watts of pulsed RF output with typical power consumption of 28 watts), 400 Watts | |

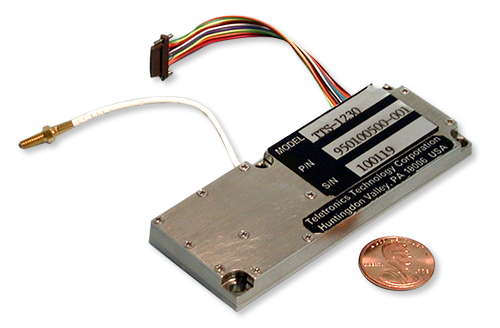

TTC TTS-1000 1.3 Cubic Inch Telemetry Transmitter - 0.5, 1 or 2 Watts | ![]() |
Miniature telemetry transmitter | 1.25 x 3.4 x 0.3”, 32 x 86 x 8 mm | L & S bands, 0.5, 1, or 2 Watt power output, Frequency selectable | |

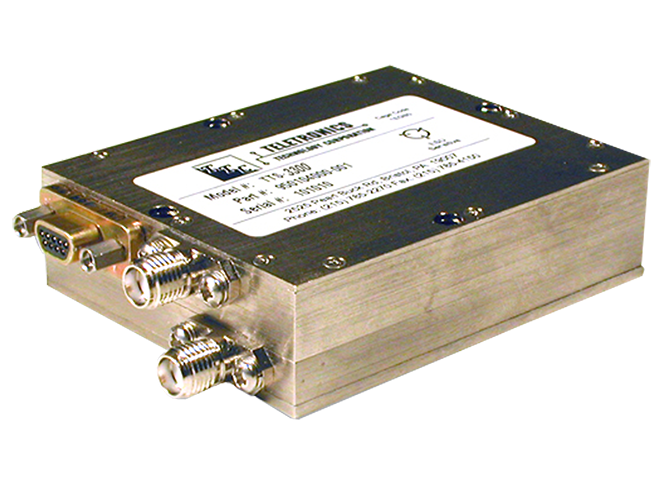

TTC TTS-3000 3.3 Cubic Inch Telemetry Transmitter - 2 or 5 Watts | ![]() |
Miniature telemetry transmitter | 2 x 3 x 0.66”, 51 x 76 x 17 mm | L & S bands, 2 or 5 Watt power output, Frequency selectable | |

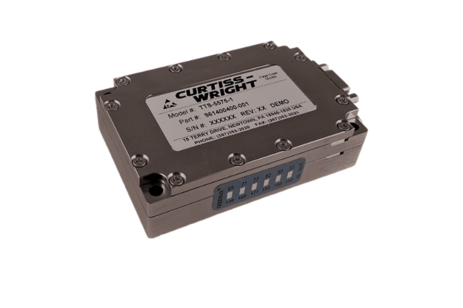

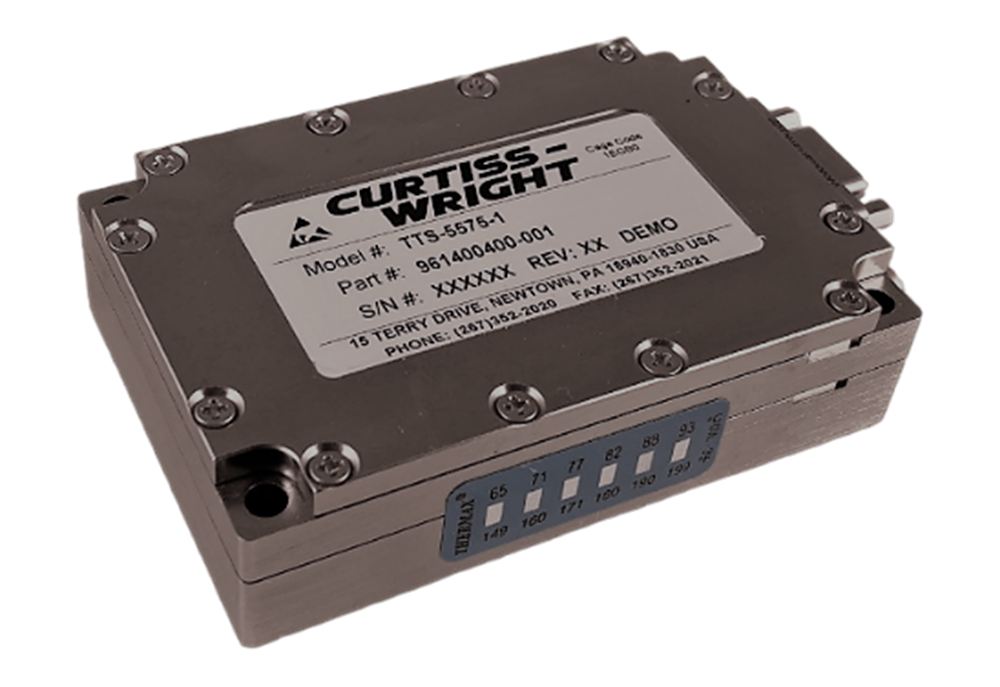

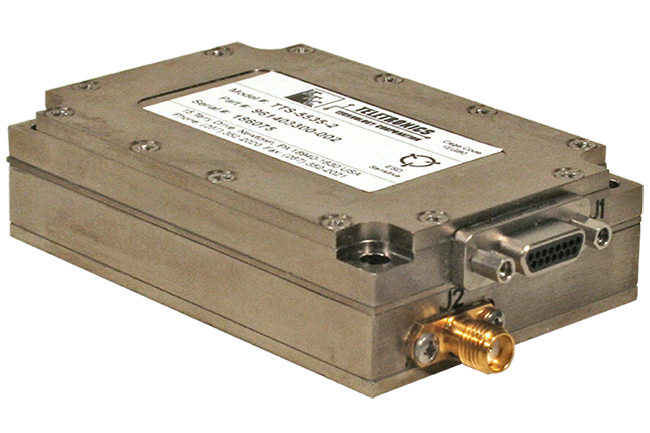

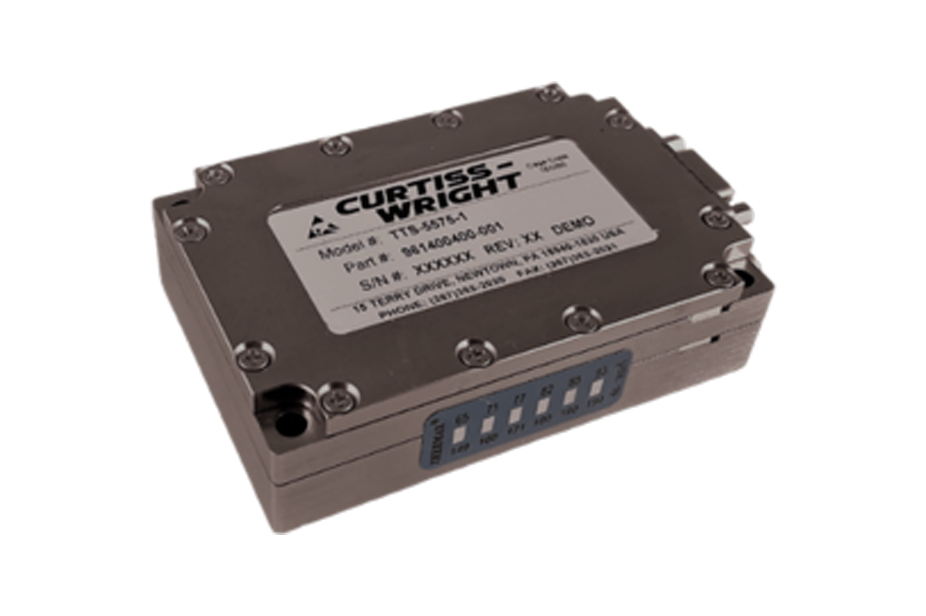

TTC TTS-5500 High Efficiency Airborne Multimode Transmitter | ![]() |
High efficiency multimode transmitter | 51 x 76 x 20 mm, 2.0 x 3.0 x 0.8”, 51 x 76 x 20 mm | PCM/FM & SOQPSK, L & S bands, Multi-H CPM | |

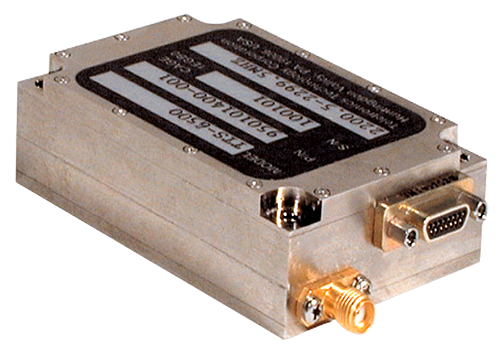

TTC TTS-6500 Airborne Multimode Transmitter, High Efficiency | ![]() |
High efficiency airborne multimode transmitter | 50 x 76 x 25 mm, 2.0 x 3.0 x 1.0" | PCM/FM & SOQPSK, L & S bands, Frequency selectable, Multi-H CPM | |
TTC TTS-9000 8.75 Cubic Inch Telemetry Transmitter - 2, 5, 10 or 20 Watts | ![]() |
Miniature telemetry transmitter | 2.5 x 3.5 x 1”, 64 x 89 x 25 mm | L & S bands, 2, 5, 10, or 20 Watt power output, Frequency selectable | |

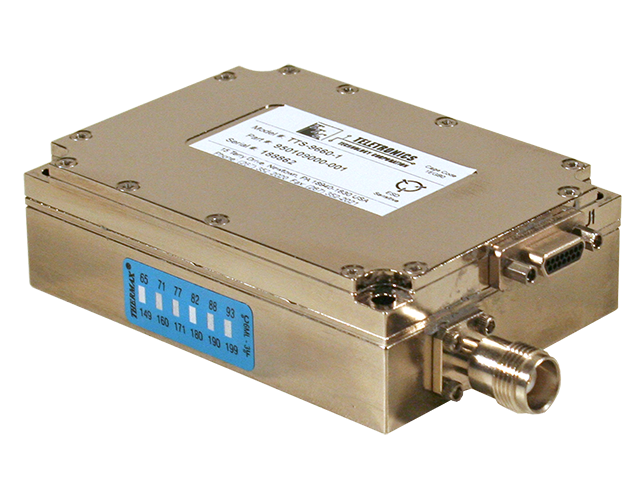

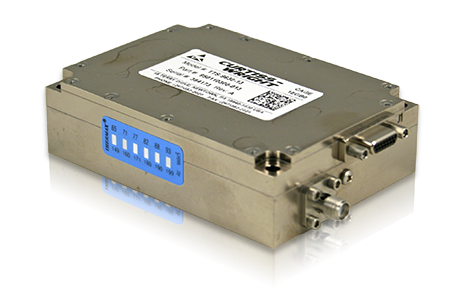

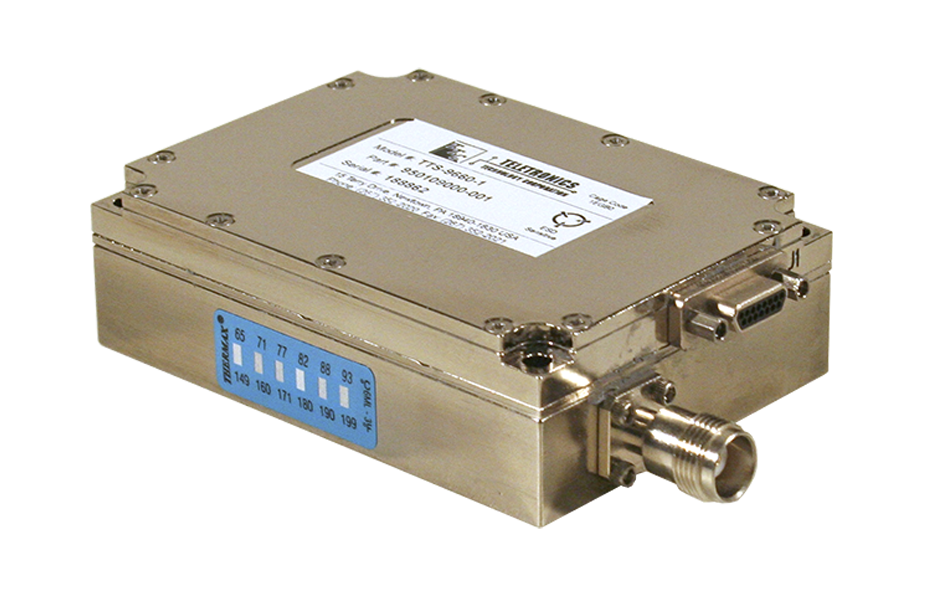

TTC TTS-9600 Airborne Multimode Transmitter, High Efficiency, C-Band | ![]() |
High efficiency airborne multimode transmitter | 2.5 x 3.5 x 1.0”, 64 x 89 x 25 mm | C Band, PCM/FM & SOQPSK, Multi-H CPM | |

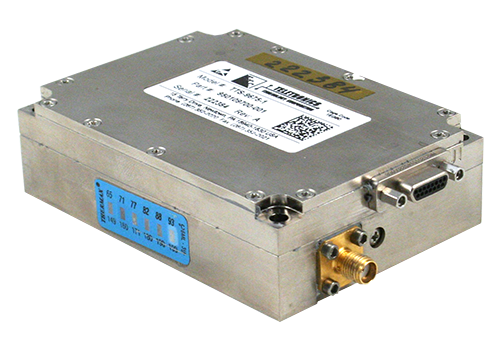

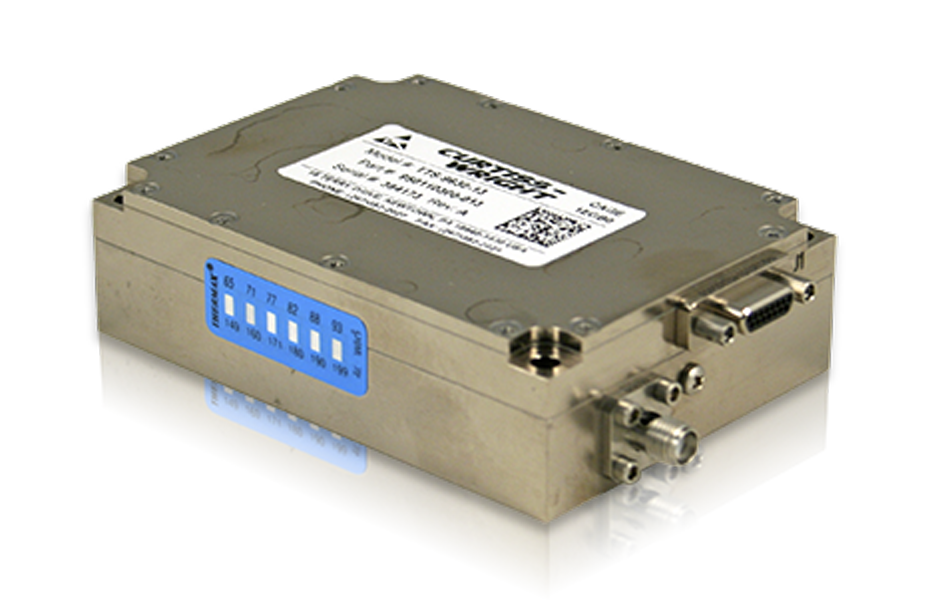

TTC TTS-9670 Airborne Multimode Transmitter, High Efficiency, C-Band | ![]() |
High efficiency airborne multimode transmitter | 2.5 x 3.5 x 1.0”, 64 x 89 x 25 mm | C Band, PCM/FM & SOQPSK, Multi-H CPM | |

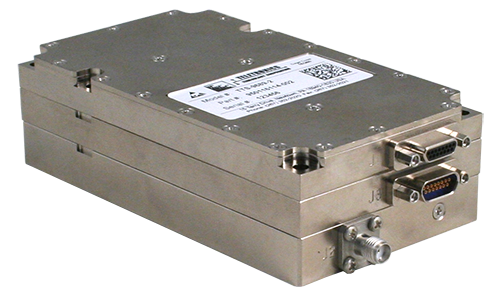

TTC TTS-9689-2 Airborne Dual Band Multimode Transmitter, High Efficiency | ![]() |
High efficiency airborne multimode transmitter | 64 x 89 x 33 mm, 2.5 x 4.5 x 1.3" | PCM/FM & SOQPSK, Multi-H CPM, L & C Band | |

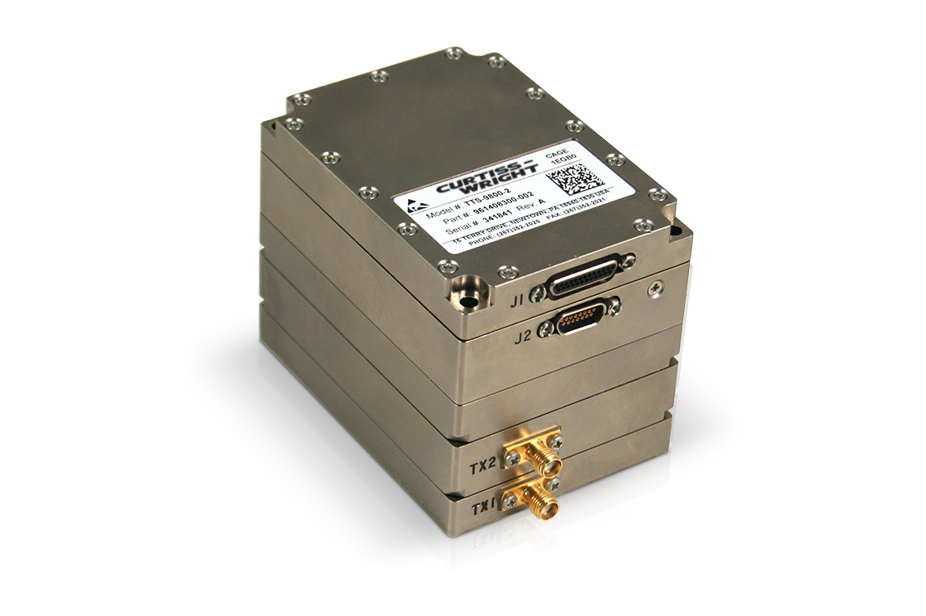

TTC TTS-9800-2 Airborne Multi-Band Multimode Transmitter | ![]() |
High efficiency airborne multimode transmitter | 2.5” x 3.5” x 2.5” | L & S & C bands downlinks | |
TTC RTAS-2000 Telemetry Re-Radiation System | ![]() |
Telemetry Re-Radiation System | 14 x 3 x 11”, 356 x 76 x 279 mm | PCM/FM & SOQPSK, UHF Uplink, L & S & C bands downlinks, Four RF channels, Multimode modulator/demodulator | |

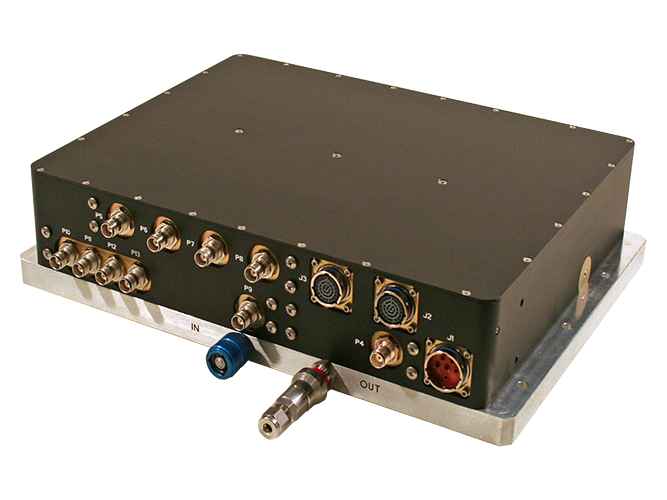

TTC RTAS-3000-1 Telemetry Re-Radiation System – C Band | ![]() |
Telemetry Re-Radiation System | 14 x 3 x 11”, 356 x 76 x 279 mm | PCM/FM & SOQPSK, UHF Uplink, L & S & C bands downlinks, Four RF channels, Multimode modulator/demodulator | |
TTC RCVR-210-S Multimode (SOQPSK + PCM) Telemetry Receiver/Demodulator | ![]() |
PCMCIA-based PCM/FM Receiver/Bit Synchonizer | PCMCIA form factor | PCM/FM & SOQPSK | |

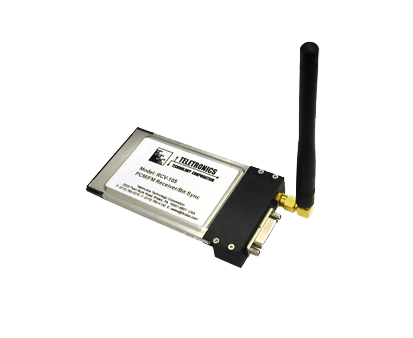

TTC RCVR-105 PCMCIA Card - PCM/FM Receiver/Bit Synchonizer | ![]() |
PCMCIA-based PCM/FM Receiver/Bit Synchonizer | PCMCIA form factor | PCM/FM | |

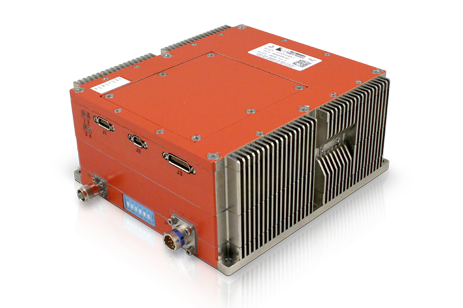

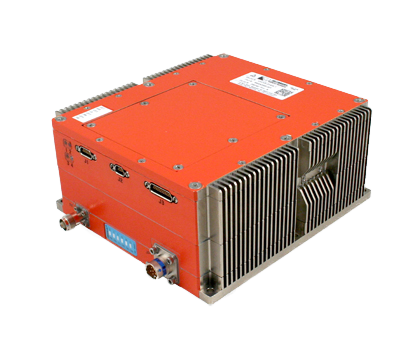

TTC nXCVR-3140A-1 Airborne Wireless C-Band Network Transceiver | ![]() |
Airborne Wireless C-Band Network Transceiver | 6.26 x 2.93 x 6.6", 159 x 74.4 x 167.6 mm | SOQPSK | |

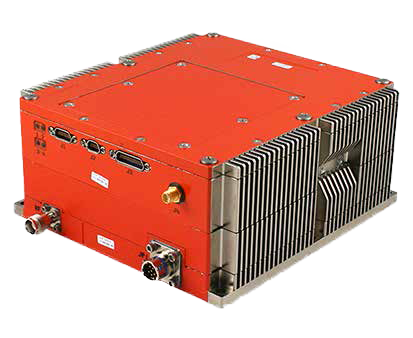

TTC nXCVR-3140A-2 Airborne Wireless C-Band Network Transceiver | ![]() |
Airborne Wireless C-Band Network Transceiver | 6.26 x 2.93 x 6.6", 159 x 74.4 x 167.6 mm | SOQPSK | |

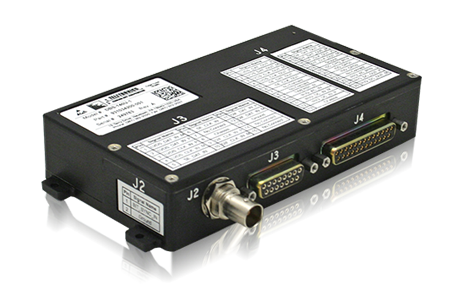

TTC DBS-140U USB 2.0 - 40 Mbps PCM Bit Sync/Decom/Simulator | ![]() |
USB, up to 40 Mbps | 76 x 29 x 140 mm, 3.0 x 1.125 x 5.5" | Playback/Simulator, TTL, RS-422, LVDS & Analog Inputs, Bit Synchronizer, Data Decommutator/BERT | |

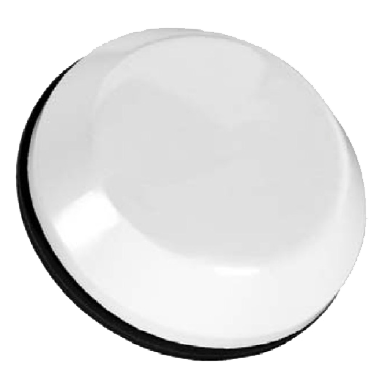

RFE/AEG/001 Airborne GPS antenna with 26dB amplifier | ![]() |
Airborne GPS antenna | High gain of 26dB, Tested to DO-160 standard |
