Highly reliable, rugged modules with large storage capacity & cutting-edge encryption
Our encrypted, solid-state network-attached storage (NAS) subsystems are designed to reliably provide file services to clients on an Ethernet network in a harsh environment. These NAS solutions protect data-at-rest (DAR) with the industry’s first NIAP Common Criteria (CC) certified 2-Layer encryption, as well as an option for NSA Type 1 encryption. With terabytes of available storage space and 100k insertion cycle connectors, these scalable rugged Ethernet file servers enable the reliable, secure storage of your critical data.
Network Attached Storage & Recorders
| Product Image | Product Name | Type | Encryption Type | Capacity | Interface(s) | Applications | Platforms | Data Sheet |
|---|---|---|---|---|---|---|---|---|
 |
DTS1 & DTS1+: 1-slot Rugged Network Attached File Server | Ethernet (network attached) | 1 or 2 layers, w/ CSfC and w/o CSfC | 256 GB, 1 TB, 2 TB, 4 TB, 8 TB | Gigabit Ethernet | Data Storage | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | |
 |

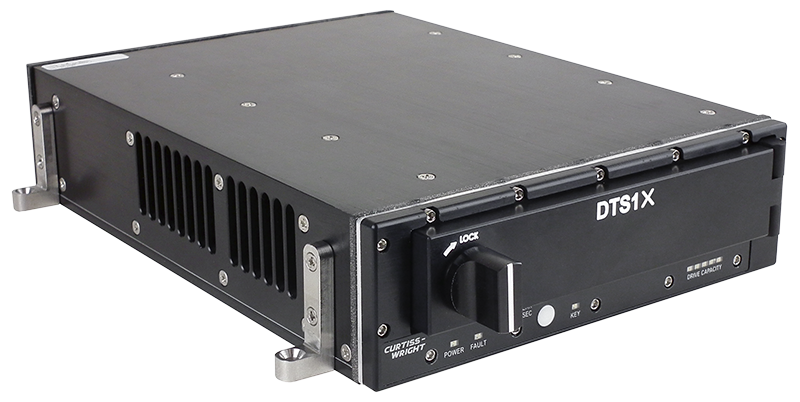

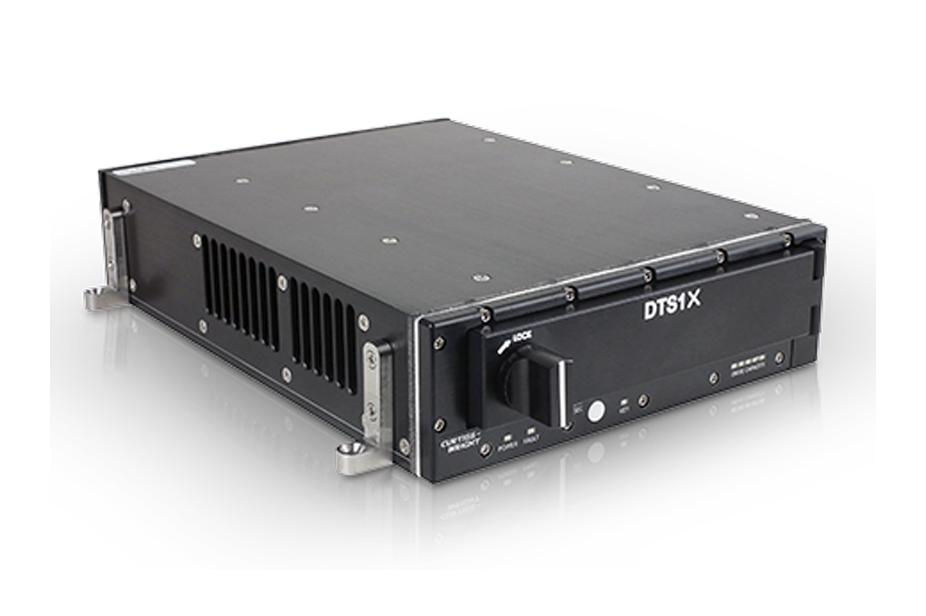

DTS1X 10GbE Network Attached Storage | Ethernet (network attached) | 1 or 2 layers, w/ CSfC and w/o CSfC | 256 GB, 1 TB, 2 TB, 4 TB, 8 TB | Gigabit Ethernet | Data Storage | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | |
 |

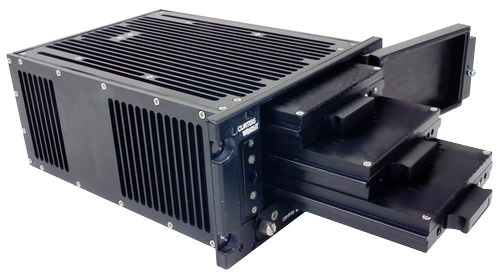

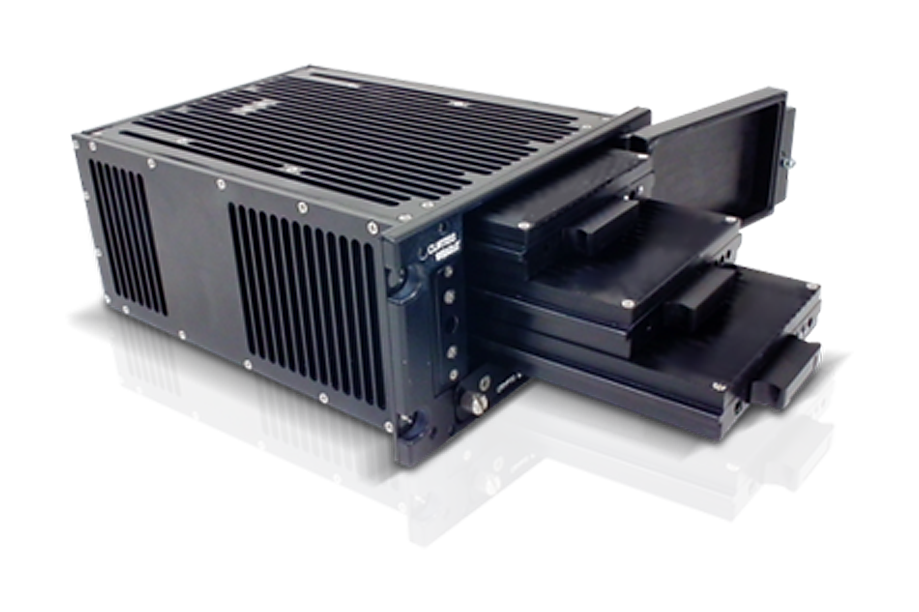

DTS3: 3-Slot Rugged Network Attached File Server | Ethernet (network attached) | 0, 1, or 2 layers | Up to 16 TB | Gigabit Ethernet | Data Storage | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | |
 |

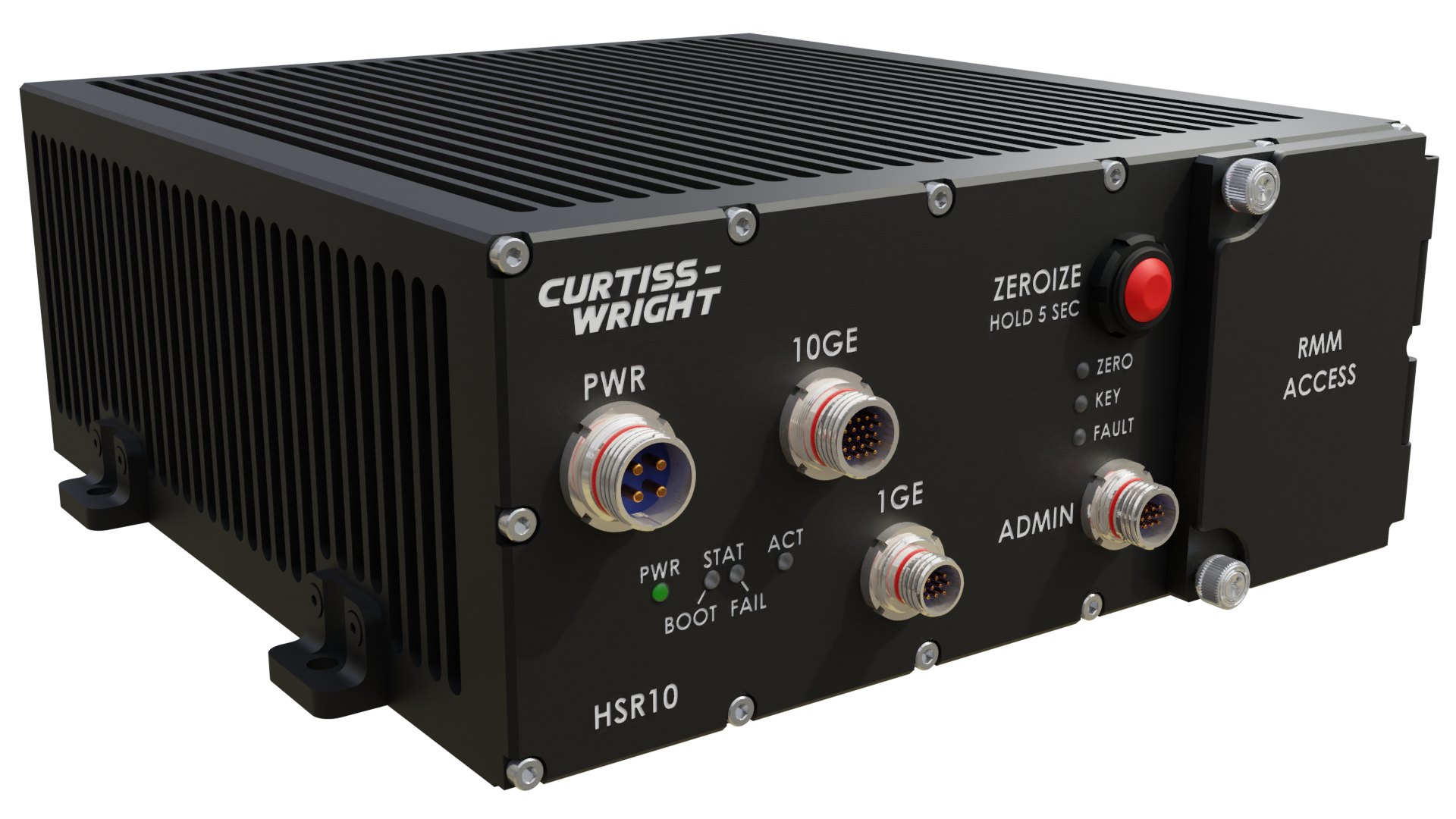

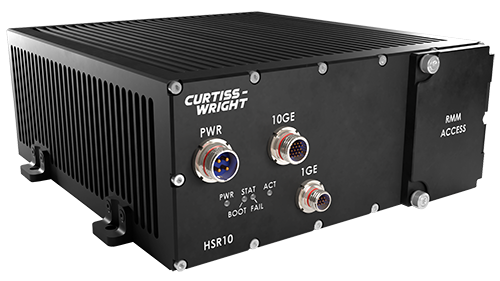

HSR10 10GbE Network Attached Storage | Ethernet (network attached) | 0, 1 or 2 layers | 16 TB | 10 GbE, Gigabit Ethernet | Data Storage | Deployed Fixed Wing, Ground, Manned Fixed Wing | |
 |

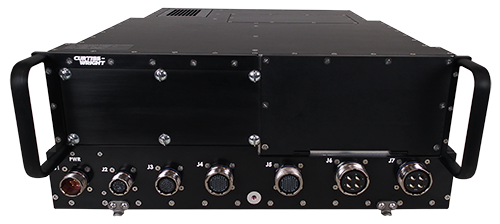

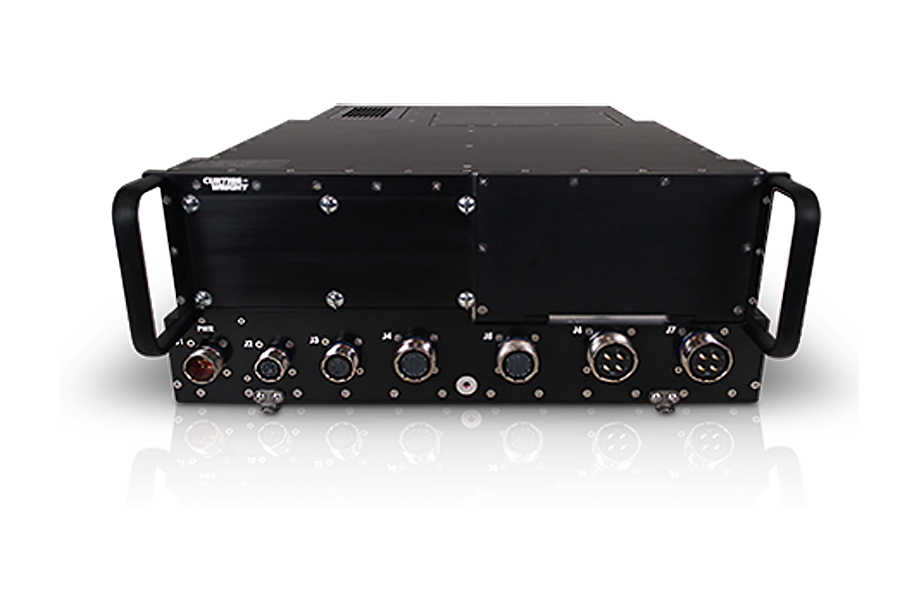

Unattended Network Storage (UNS) | Ethernet (network attached) | NSA Type 1 | 32 TB, 64TB | 10 GbE, Gigabit Ethernet | Data Storage | Deployed Fixed Wing, Ground, Naval, Unmanned | |
 |

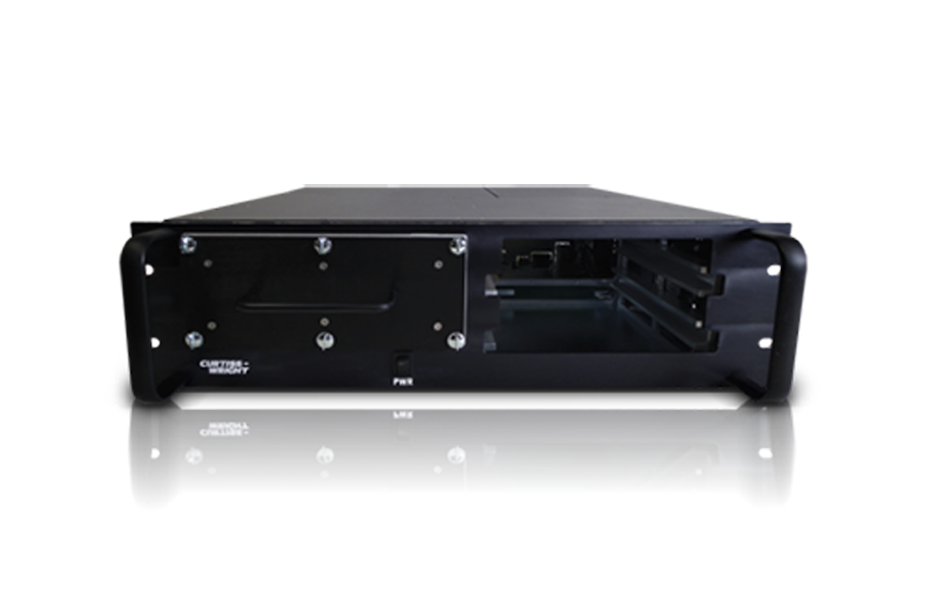

Unattended Network Storage Ground Station (UNS-GS) | Ethernet (network attached) | NSA Type 1 | 32 TB, 64TB | 10 GbE, Gigabit Ethernet | Data Storage | Deployed Fixed Wing, Ground, Naval, Unmanned | |
 |

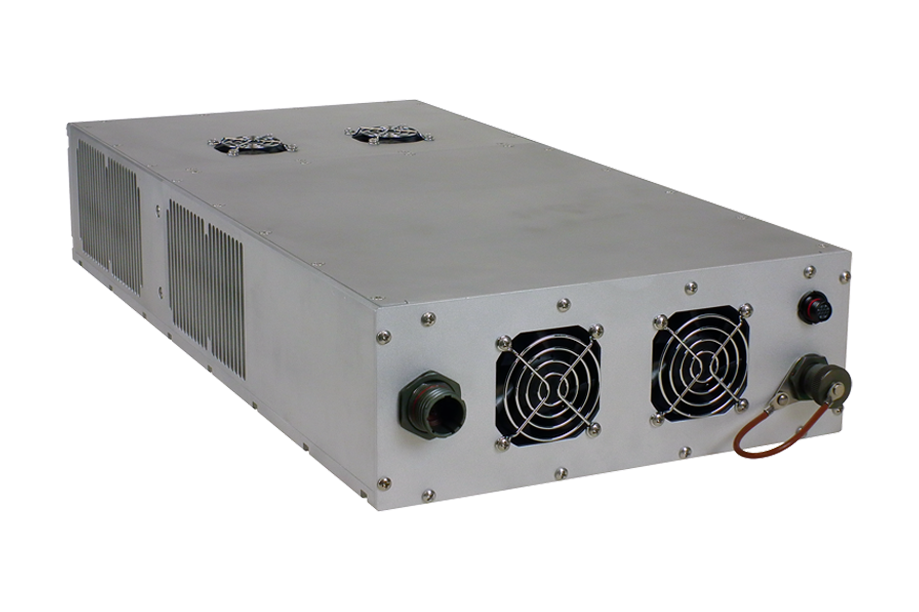

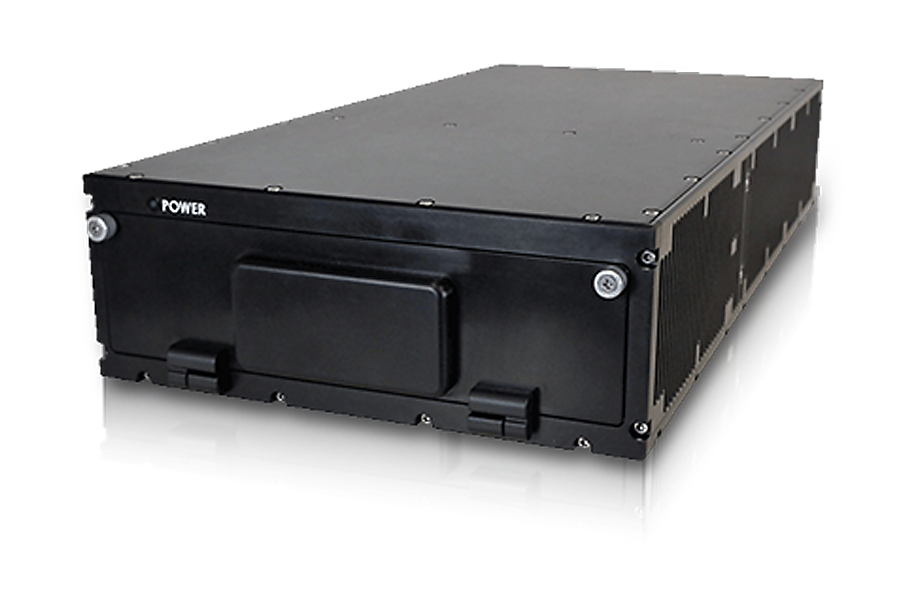

HSR40 CC - 40GbE Network Attached Storage | Ethernet (network attached) | 0, 1 or 2 layers | 2 x 20 TB | 40 GbE, Gigabit Ethernet | Data Storage | Deployed Fixed Wing, Ground, Manned Fixed Wing | |
 |
HSR40 AC - 40 GbE Network Attached Storage | Ethernet (network attached) | 0, 1 or 2 layers | 32 TB, 64 TB | 40 GbE, Gigabit Ethernet | Data Storage | Deployed Fixed Wing, Ground, Manned Fixed Wing | |
 |

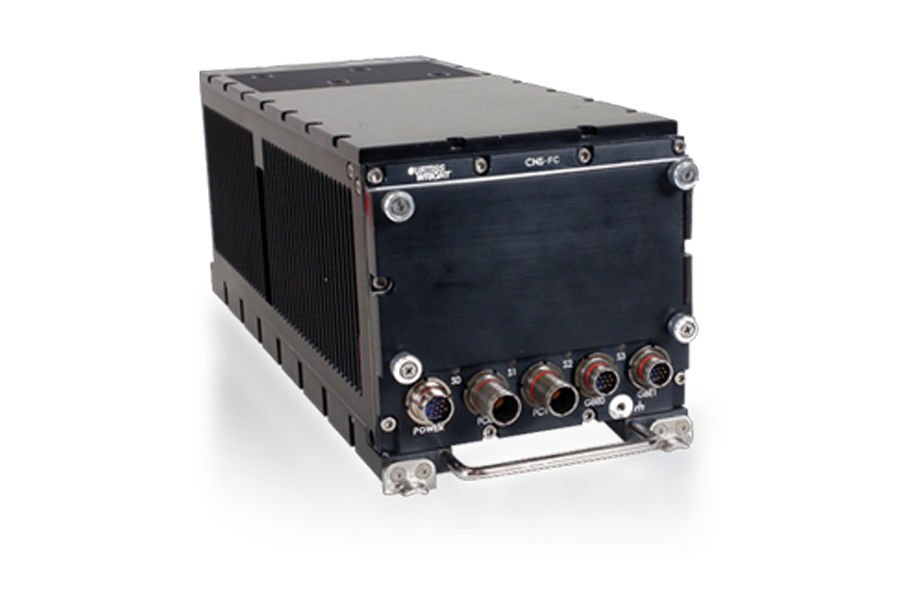

CNS2-FC: 2-slot Rugged Network Attached Storage | Ethernet (network attached), Fibre Channel (storage area), iSCSI | FIPS 140-2 | 2 x 2TB | 2 x 1GbE, 2 x FC | Data Storage | Ground, Manned Fixed Wing, Rotorcraft, Unmanned | |
 |

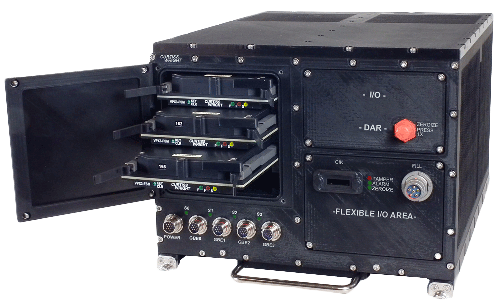

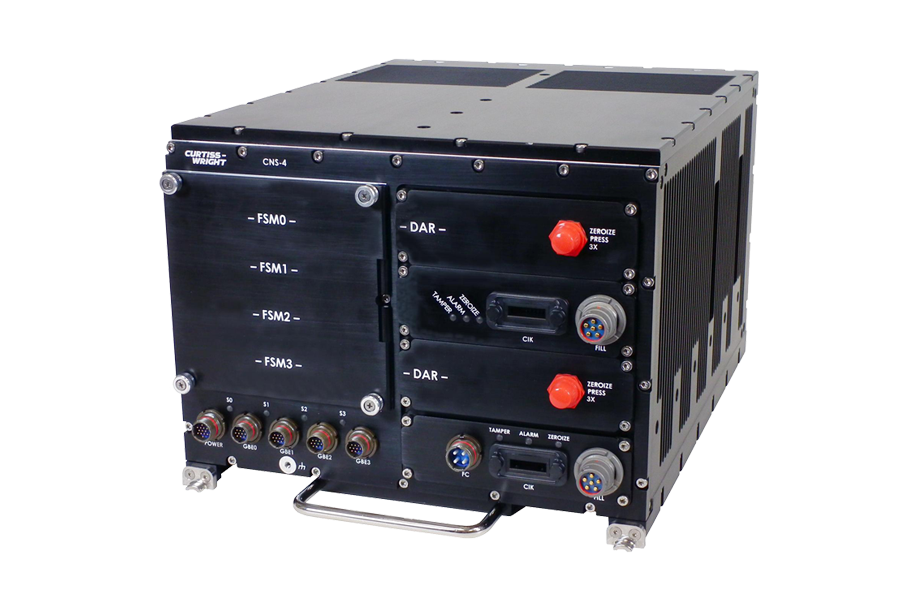

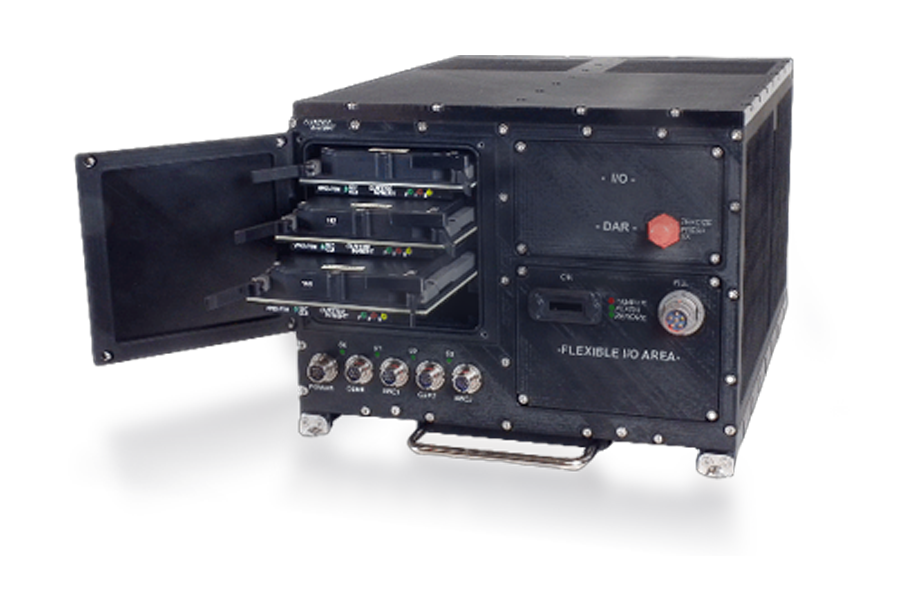

CNS4: 4-slot Rugged Network File Server | Ethernet (network attached) | 0, 1 or 2 layers, Optional Type 1 | 2 TB, 4 TB, 6 TB, 8 TB | 10 GbE, Gigabit Ethernet, Serial FPDP | Airborne Surveillance, Data Storage, Mission Management, Networking | Ground, Manned Fixed Wing, Naval, Rotorcraft, Unmanned | |
 |

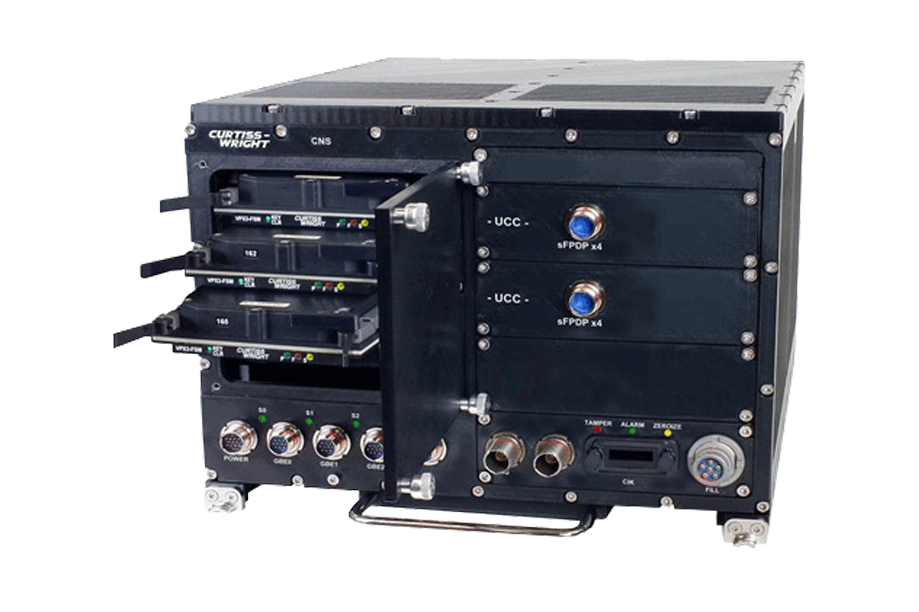

CNS4 Rugged Data Recorder | Ethernet (network attached), Serial FPDP | Optional Type 1 | 2 TB, 4 TB, 6 TB, 8 TB | 10 GbE, Gigabit Ethernet, Serial FPDP | Data Recording, Data Storage, Flight Test, Mission Recording | Deployed Fixed Wing, Rotorcraft | |
 |
CNS4-FC: 4-slot Network Attached Storage | Ethernet (network attached), Fibre Channel (storage area), iSCSI | Optional Type 1 | 4 x 2TB | 2 x FC, 4 x 1GbE | Data Storage | Ground, Manned Fixed Wing, Rotorcraft, Unmanned | |
 |

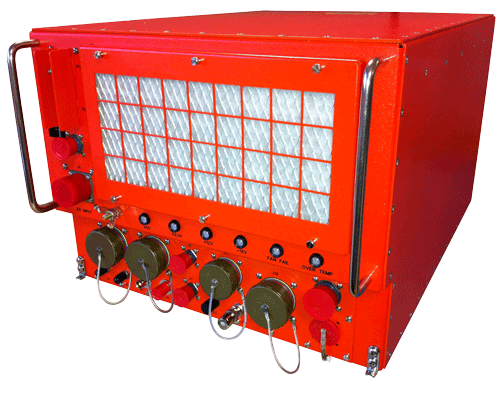

Flight Qualified Data Recorder and Playback System | Custom, Serial FPDP | NA | Control data, EIA-422 Receiver, MIL-STD-1553, SCRAMNet, Serial FPDP | Airborne Surveillance, Data Recording, Flight Test, Image Processing, Radar Processing | Manned Fixed Wing |
Data Encryption
Cost-effective, proven, and certified COTS storage solutions that match today's security requirements, including National Security Agency (NSA) Type 1, NSA Commercial Solutions for Classified (CSfC), Common Criteria (CC), and FIPS 140-2.
White Paper: High-Speed Data Recording Insights for the Military Embedded Industry
With the advent of high-speed networks, such as 40GbE and faster, it is essential to change the approach of how network data is recorded and stored while utilizing the total throughput of the available link.
Curtiss-Wright conducted a comprehensive feasibility study of different data recording technologies and performed extensive testing of various protocols. This paper introduces the results of those tests and then presents the comparative data.
Reduce Program Costs with Curtiss-Wright System Solutions
Curtiss-Wright delivers complete system of systems integration and support services that reduce interoperability risks, lowers program costs and accelerates time to market. Our system solutions range from air data computers, to data recording and storage systems, networking and communications, mission computers, and video management systems.
Unmanned Surface Vehicle Requires NetBoot and Commercial Encryption
Tasked with building a new Unmanned Surface Vehicle (USV), a shipbuilder faced challenging requirements. The developer planned to connect all the computer systems via a one gigabit Ethernet (1 GbE) network. In such a network, the systems would be able to share critical mission and map data and distribute sensor data gathered during the mission, such as terrain information and threat assessments. A network-attached storage (NAS) device would store and distribute data to the various clients, thus supporting the autonomous operation.
