DTS1X 10 GbE Network Attached Storage

  • Overview
  • Specifications
  • Downloads
  • Featured Products
  • Request a Quote
  • Product Support

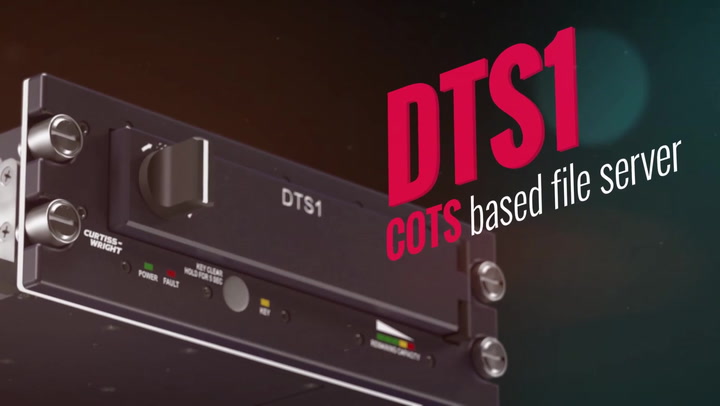

Establish secure, fast data transfer and protect data-at-rest without interrupting or compromising system performance with the DTS1X. Data capture systems on modern military vehicles must be capable of processing massive volumes of data without interruption. The DTS1X is a rugged, ready-to-deploy data-at-rest network attached file server that supports a 10 GbE interface with removable memory and two layers of encryption.

The secure small form factor DTS1X stores and protects large amounts of classified data on manned and unmanned vehicles, including unmanned aerial vehicles (UAV), unmanned underwater vehicles (UUV), unmanned ground vehicles (UGV), and intelligence surveillance reconnaissance (ISR) aircraft. The DTS1X offers two layers of full disk encryption (FDE) in a single device that is Size, Weight, and Power (SWaP) optimized and ready to deploy. The device will be Commercial Solutions for Classified (CSfC) approved in 2025.

The DTS1X is a commercial off-the-shelf (COTS) network attached storage (NAS) device for use in 10 Gigabit Ethernet (GbE) architectures that demand high data throughput. Network clients can use the DTS1X to store sensor and maintenance data and retrieve mission and digital map data. The network attached storage device allows clients to capture, store securely, and retrieve files at fast throughput rates with two layers of encryption. Support of industry standard NAS protocols like NFS, CIFS, FTP, TFTP, and HTTP enables clients to use different operating systems (Linux®, VxWorks®, Windows®, etc.) or central processing units (CPU) (Power Architecture®, Intel®, Arm®, etc.), which permits system design flexibility.

The rugged DTS1X is easily integrated into network-centric systems and houses one removable memory cartridge (XRM). The XRM can be easily removed from one DTS1X and installed into any other DTS1X, providing seamless data transfer between one or more networks in separate locations (e.g., from ground to vehicle to ground), and quick data offloading.

2023 MAE Innovators Awards Silver Honoree
2023 MAE Innovators Awards Silver Honoree

Key Features

  • 1 x 10 GbE port BASE-T
  • Secure Data Protection
    • Full Drive Encryption - hardware and software
    • CSfC Certifiable
  • Convection cooled
  • Fast data throughput rate of 400 MB/s (write)
  • SWaP optimized at <53 cu in, 3.55 lbs., and 25 W
  • Network attached storage protocols supported:
    • Block Storage (iSCSI)
    • Ethernet recording and packet capture (PCAP)
    • File serving (NFS, CIFS, FTP, TFTP, HTTP)
    • Remote boot of network clients (PXE, DHCP)
    • Video stream capture (RTP)
    • Network management (SNMP)

Applications

  • Deployed network-centric systems
  • Manned vehicles
  • Unmanned vehicles
  • Air, Sea, and Ground vehicles
