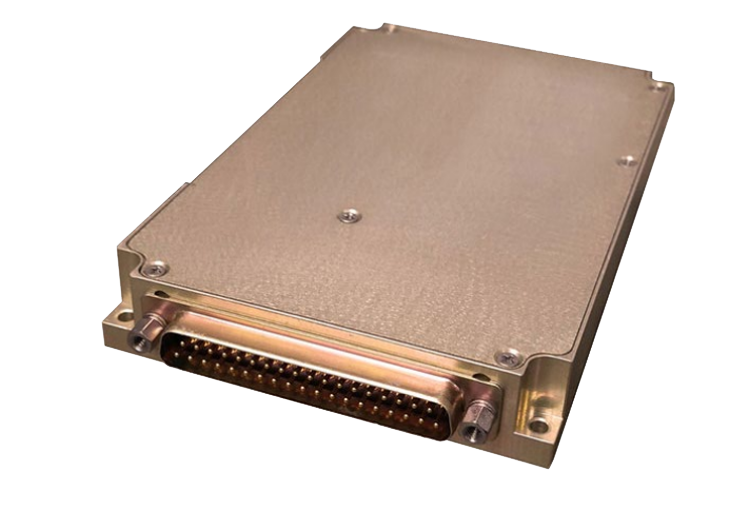

The PSM-6204-1 is a miniature, high density, high efficiency DC/DC power supply. It is designed to interface with power systems providing voltages nominally at 270 VDC and provide regulated 28 VDC voltage output to airborne flight test instrumentation (FTI) equipment.
The PSM-6204-1 provides up to 400 W to a 28 V system and operates at a fixed switching frequency with option for external synchronization, remote sense, and on/off Inhibit control.
