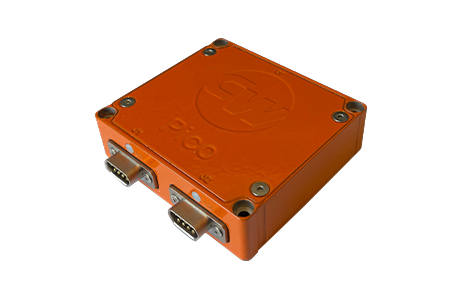

AXP/ADC/401 Axon Pico Data Sheet


The Axon Pico is an 8-channel flexible ADC, stand-alone data acquisition unit. It supports full-bridge, half-bridge, differential-ended, single-ended, RTD, thermocouple, ICP, and AC-coupled measurements with both voltage and current excitation. Data is packetized directly out of the unit, without the need for a separate chassis. Each unit has two ports, which carry both 100BaseTX Ethernet and power, over CAT5 or better cable. Units can be daisy-chained together, with system synchronization using IEEE 1588 PTP, with each Pico in the chain providing PTP Transparency to downstream units.
