XMC (VITA 42) Standard

Bringing Switched Fabric Technology to the Mezzanine Card Form Factor

XMC (or Switched Mezzanine Card) owes its existence to the embedded computing community’s acceptance of a groundbreaking proposal in 2002 to standardize gigabit serial switched fabrics and defined in the ANSI/VITA 42.0 specification. The resulting VITA 42.3 XMC Mezzanine specification was a natural extension of the PCI standard by providing PCI Express support and adding new connectors to support gigabit serial interfaces and alternative I/O standards.

Related Products

Curtiss-Wright Defense Solutions offers a wide range of flexible, high performance XMC solutions, allowing system integrators to meet the demanding networking and I/O requirements of RADAR, EW, SIGINT, COMINT, ECM, ESM and C4ISR applications.

XMC Processor Cards

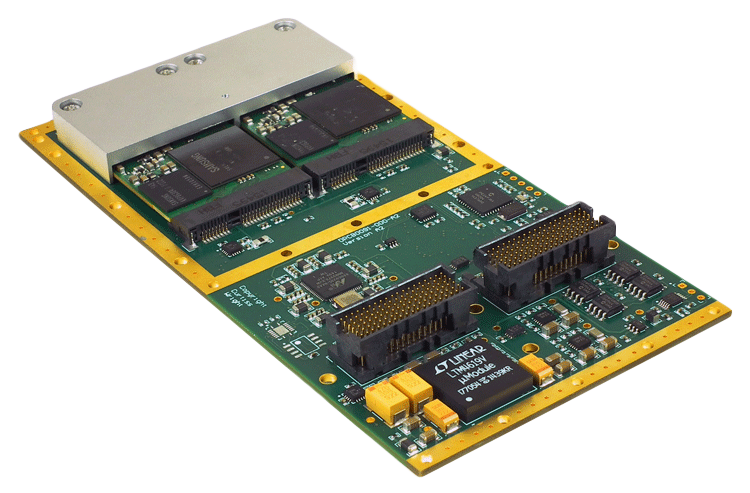

XMC Storage Device
XMC FPGA Cards

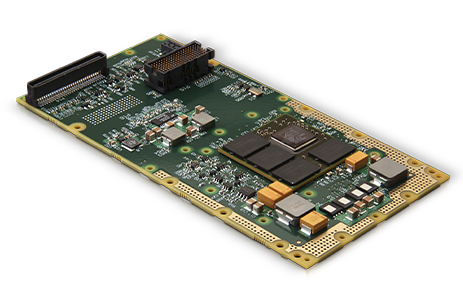

P/XMC GPU & GPGPU Modules
XMC I/O Modules

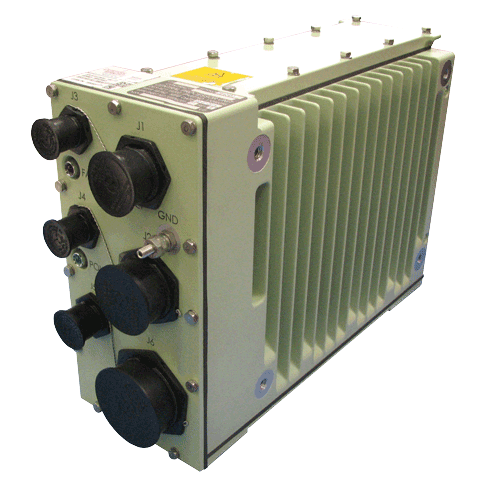

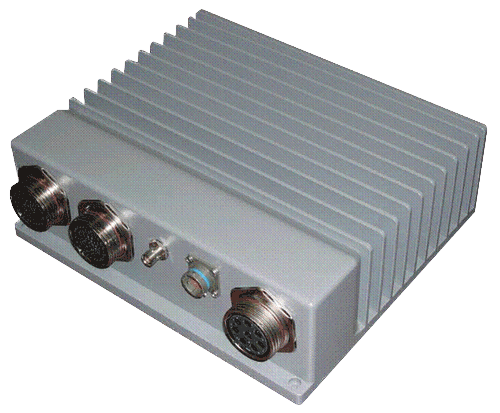

Mission Computers with XMC slots

XMC has proven to be very successful, expanding past the base VITA 42.0 specification to include technologies such as PCI Express (ANSI/VITA 42.3), Parallel RapidIO (ANSI/VITA 42.1), and Serial RapidIO (ANSI/VITA42.2), to name the first three of a growing list. The PCI Express variant of XMC is by far the most common.

One of the key factors contributing to the popularity of XMC today is the widespread adoption of more sophisticated functions such as FPGA based processors for peripheral I/O functions, an application area where mezzanine cards like XMC are frequently employed. In addition, an increasing proportion of I/O functions are based on serial, rather than parallel interfaces which is exactly the reason the XMC specification was developed. Most new generation VME or VPX CPU or DSP format hosts are likely to have one or more XMC mezzanine sites.
