Rugged Ethernet switches designed for the harshest aerospace environments
Our compact, deterministic flight test switches have been qualified to reliably deliver high-speed, real-time data with a wide temperature operation ranging from -40 to 85°C. Their rapid boot-up capability minimizes data loss from power outages, while their flexible forwarding and filtering configurations can send what is required to multiple destinations for real-time monitoring, recording, and transmission. Our selection of flight test switches includes support for IEEE-1588 PTP, embedded v1 and v2 Grandmaster support and translation, and GPS and digital IRIG-B input and output. We also offer additional hardware to translate between PCM/CAIS and Ethernet to help protect existing hardware investment and have participated in the TmNS program by developing leading-edge technology for complete network monitoring and control.
| Product Name | Product Image | Ports | Speed Mbps | Dimensions (W x H x L) | Type | Mass | Product Sheet |
|---|---|---|---|---|---|---|---|

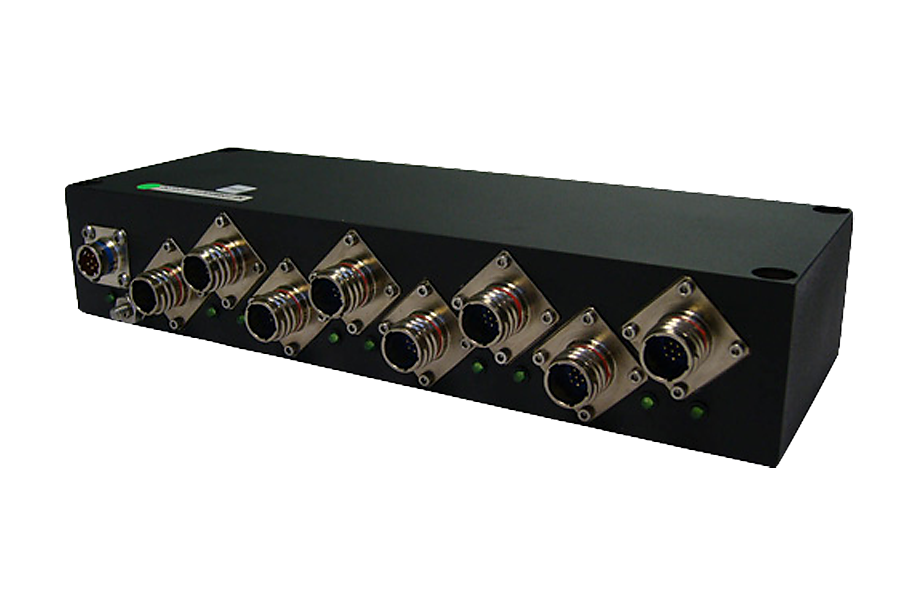

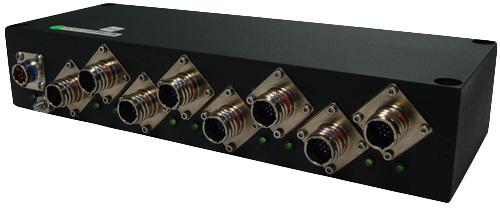

| NET/SWI/006 Ethernet Switch |  |
8 | 100/1000 | 3.35 x 1.81 x 9.52", 85 x 46 x 242mm | Standalone | 1.2 kg, 2.6 lb | |

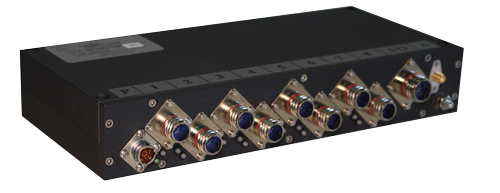

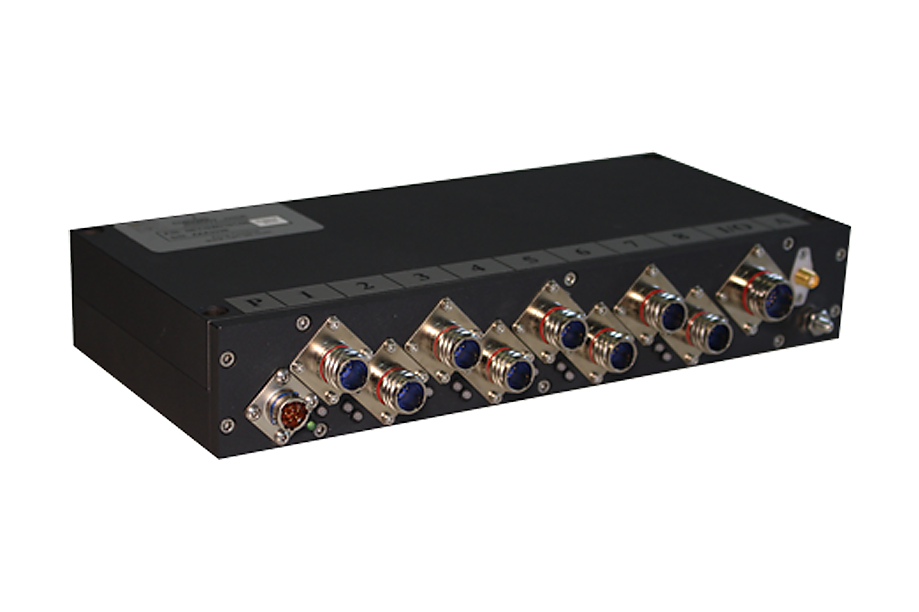

| NET/SWI/101 Gigabit Ethernet Switch |  |
8 | 100/1000 | 124 x 46 x 269 mm, 4.9 x 1.8 x 10.6” | Standalone | 1.8 kg, 3.8 lb | |

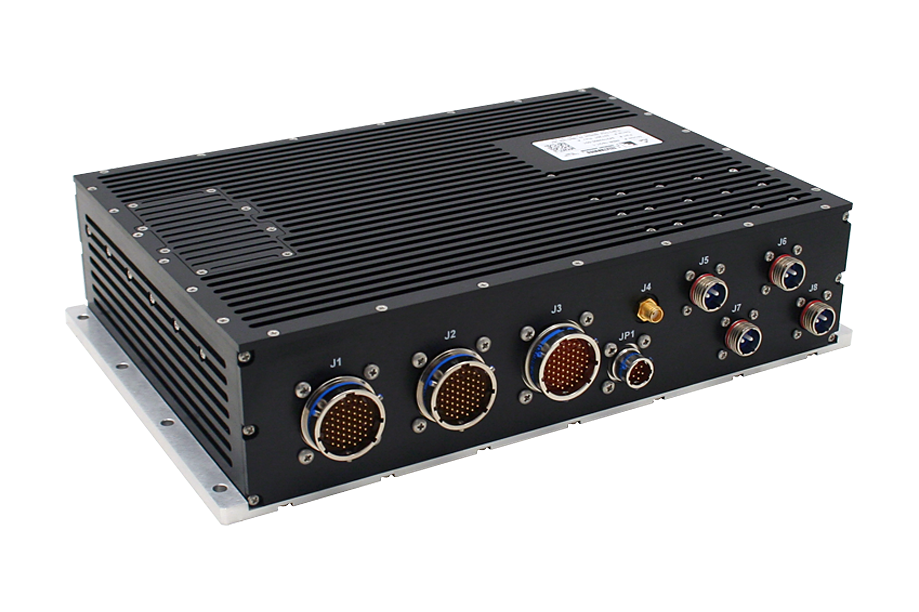

| TTC NSW-16GT 16-Port Ethernet Switch |  |
4 & 12 | 12 x 100/1000, 4 x 1G/10G Base SR | 10.75 x 2.5 x 7.0", 273 x 64 x 178 mm | Standalone | 3.0 kg, 6.7 lb | |

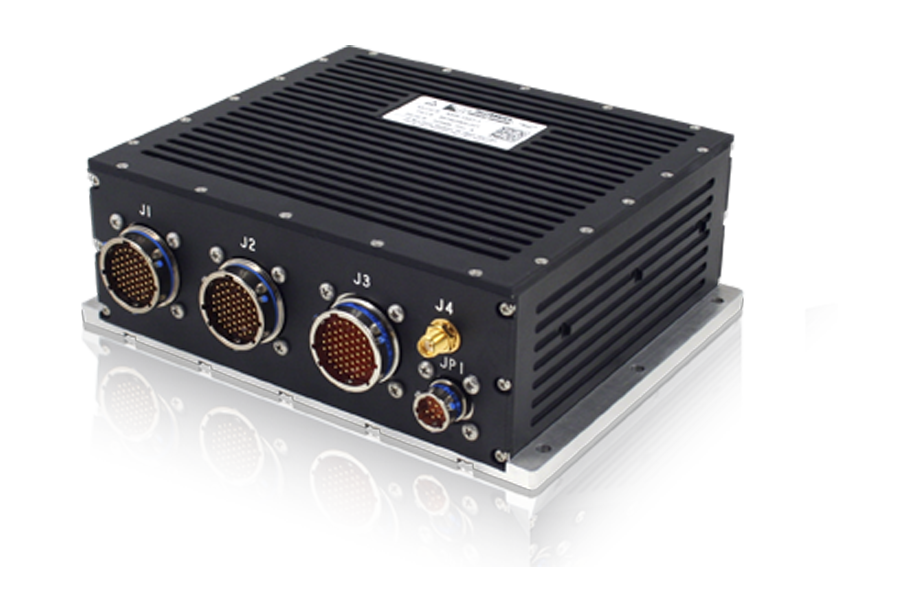

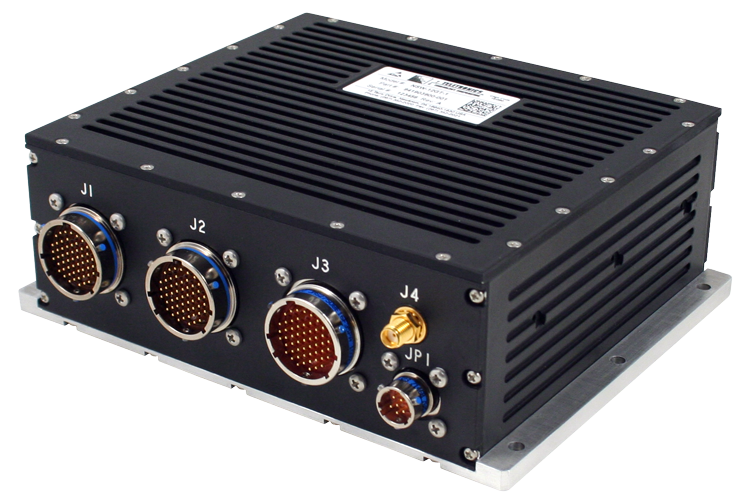

| TTC NSW-12GT Rugged 12-Port Ethernet Switch |  |
12 | 100/1000 | 178 x 61 x 140 mm, 7.0 x 2.4 x 5.5" | Standalone | 1.8 kg, 3.9 lb | |

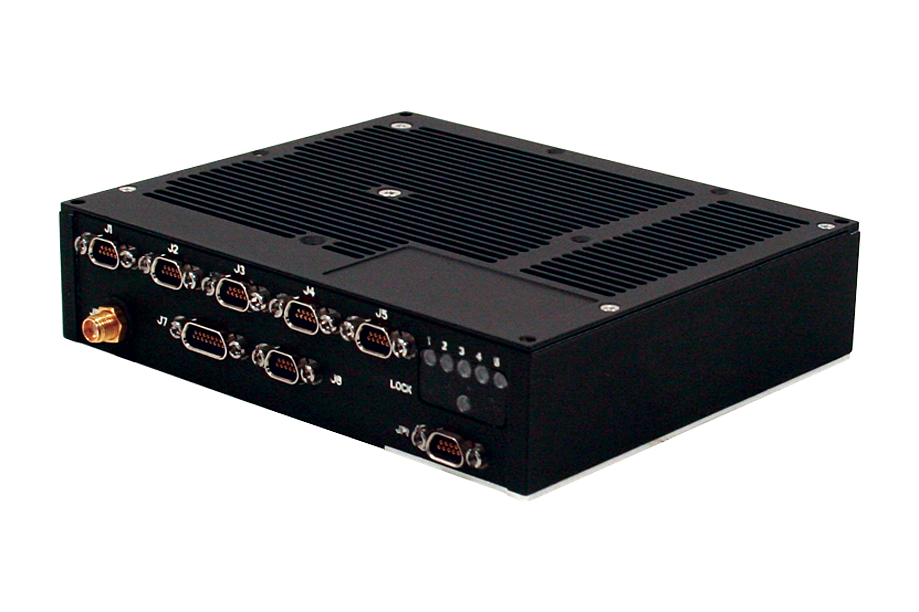

| TTC NSW-5GT-TGE Rugged 5-port Ethernet Switch |  |
5 | 100/1000 | 137 x 32 x 113 mm, 5.39 x 1.25 x 4.45" | Standalone | 0.8 kg, 1.7 lb |
Modern, High-Speed FTI Recorder and Switch Requirements and Use Cases
This white paper discusses the factors influencing the switch and recorder units for a distributed FTI system and a single recorder alternative.
