What is Time Sensitive Networking (TSN)?
Time Sensitive Networking (TSN) is a set of Ethernet networking capabilities that transmit time-sensitive data across standard Ethernet networks. Originally, Time Sensitive Networking grew out of the IEEE 802.1 standard working groups on Audio Video Bridging (AVB) to ensure that independent networks streams for audio and video data arrive at the correct times to ensure synchronization. AVB also requires guaranteed delivery throughput and latency to avoid problems like missing video frames.
Today, Time Sensitive Networking features new 802.1 standards that go beyond AVB time-synchronized streaming. These enhancements can support low-latency, precision data delivery over Ethernet for a broader set of industrial, automotive, aerospace, and other real-time communications applications.
As an open standard technology supported by most major semiconductor suppliers, like Intel, Time Sensitive Networking is designed to co-exist with today’s low-cost Ethernet technologies. It works dynamically, allowing time-sensitive communications channels to be configured and set up flexibly as needed in real time.
Time Sensitive Networking technology offers several important capabilities to embedded defense systems.
It makes use of IEEE-1588v2 Precision Time Protocol (PTP) to provide clock synchronization between nodes. Once clocks are synchronized, Time Sensitive Networking can be used to set up a deterministic communications channel between nodes. This setup can be defined with guaranteed parameters, such as throughput, latency, and jitter.
Curtiss-Wright Deterministic Ethernet Solutions
Many Curtiss-Wright single board computer modules and mission computer systems can already take advantage, to varying degrees, of Time Sensitive Networking communications, requiring only software support. Most of our processors support the time synchronization capabilities of IEEE-1588v2 and can support PTP software daemons. Several next-gen mission computers and Ethernet switches from Curtiss-Wright are roadmapped to fully support Time Sensitive Networking connectivity as endpoints and network bridges, respectively.

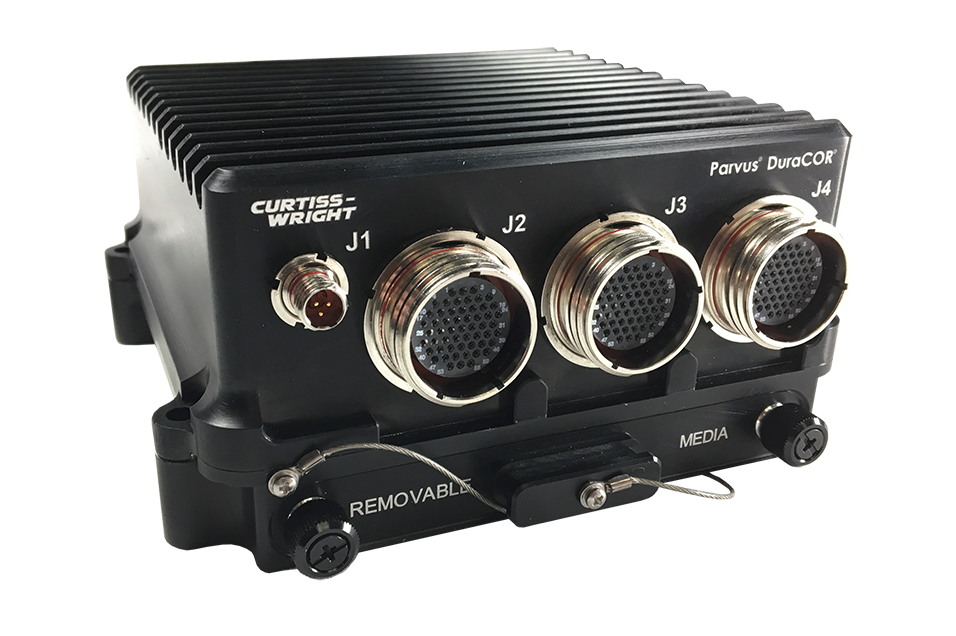

DuraCOR 313 Mission Computer with Time Sensitive Networking
The DuraCOR 313 is a SWaP-optimized, ultra-small form factor mission computer that’s an ideal fit for applications requiring deterministic networking. In addition to its two Gigabit Ethernet ports with Time Sensitive Networking support, this modular system features a four-core CPU, an integrated 18-core Intel GPU, expansive memory, and enhanced security features.
Learn more about the DuraCOR 313.
Small Form Factor Mission Computers
Modular, small and ultra-small form factor mission computers designed to maximize performance and flexibility while minimizing SWaP-C
